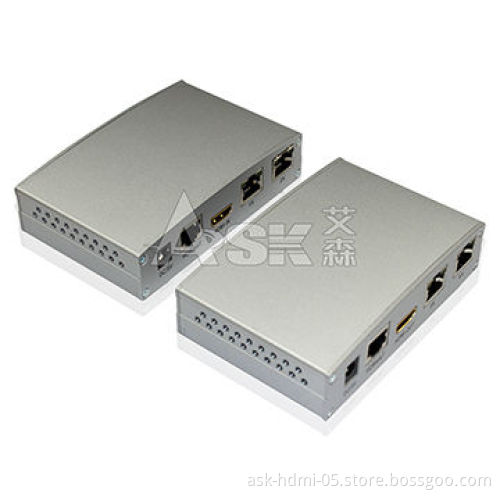

Single Cat5E/6 HDMI Extender, Up to 100M-4K Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Supports 3D

Supports HDCP

Supports 1080p at 60Hz at 48-bit pixels

Through one Cat5e or Cat6 to send the 10.2Gbps HDMI signal and 100Mbps Ethernet signal, the distance can reach 100m

There are four standard Ethernet ports on the sender and receiver

While use one Ethernet signal to connect any of the four Ethernet port in sender and receiver

Any of the four Ethernet ports in sender and receiver, the other three Ethernet port can go connection with PC to surf

Video out supported: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Supports CEC

IR extension function, you can use the signal source remote to control the source device at the receiver

LED status light： When the power or extender is working, the related LED light will go bright

Use standard HDMI cable and Ethernet cable

Easy operation and installation

With 5V/2A power adapter

Length of Cat6 cable between Rx and TX: up to 100 meters

HDMI input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

HDMI output: 4/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Supports audio format output: LPCM7.1/DTS/Dolby-AC3/DSD

Dimensions (L x W x H): 115 x 78 x 2 2 (mm) (RX/TX)

Weight: 200g
