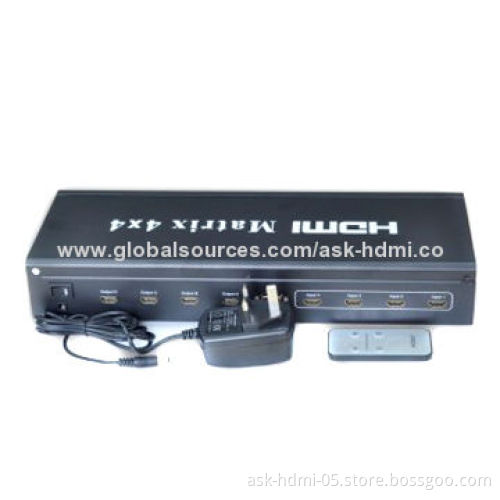

4x4 HDMI matrix switcher, 1.3V, RS232
  • 4x4 HDMI matrix switcher, 1.3V, RS232
  • 4x4 HDMI matrix switcher, 1.3V, RS232
4x4 HDMI matrix switcher, 1.3V, RS232
4x4 HDMI matrix switcher, 1.3V, RS232

4x4 HDMI matrix switcher, 1.3V, RS232

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Four HDMI input signals switched or split to four HDMI sink devices
    • Supports: CEC
    • Supports: deep-color 30, 36-bit
    • Supports: Blu-ray 24/50/60fps/HD-DVD/XVYCC
    • Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Supports: signal retiming
    • Supports: input up to 15 meters 26AWG HDMI standard cable length, output up to 25 meters 26AWG cable length
    • Input can be switched with the IR remote control, also can be controlled by four buttons
    • Serial RS-232 remote port
    • It can smartly jump over those input sources which are not connected
    • No loss of quality
    • Installs in minutes
    • Need 5V DC/4A power supply
  • Specifications:
    • HDMI resolutions: 24/50/60fs/1080P/1080P/720P/576P/576I/480P/480I
    • Supported video color formats: 24-bit/deep-color 30-bit, 36-bit
    • Supported audio formats: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Max bandwidth: 225MHz
    • Max baud rate: 6.75Gbps
    • Input/output TMDS signal: 0.5 - 1.5Vp-p (TTL)
    • Input/output DDC signal: 5Vp-p (TTL)
    • Input cable distance: ≤15m AWG26
  • Four HDMI input signals switched or split to four HDMI sink devices
  • Supports: CEC
  • Supports: deep-color 30, 36-bit
  • Supports: Blu-ray 24/50/60fps/HD-DVD/XVYCC
  • Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Supports: signal retiming
  • Supports: input up to 15 meters 26AWG HDMI standard cable length, output up to 25 meters 26AWG cable length
  • Input can be switched with the IR remote control, also can be controlled by four buttons
  • Serial RS-232 remote port
  • It can smartly jump over those input sources which are not connected
  • No loss of quality
  • Installs in minutes
  • Need 5V DC/4A power supply
  • HDMI resolutions: 24/50/60fs/1080P/1080P/720P/576P/576I/480P/480I
  • Supported video color formats: 24-bit/deep-color 30-bit, 36-bit
  • Supported audio formats: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth: 225MHz
  • Max baud rate: 6.75Gbps
  • Input/output TMDS signal: 0.5 - 1.5Vp-p (TTL)
  • Input/output DDC signal: 5Vp-p (TTL)
  • Input cable distance: ≤15m AWG26
