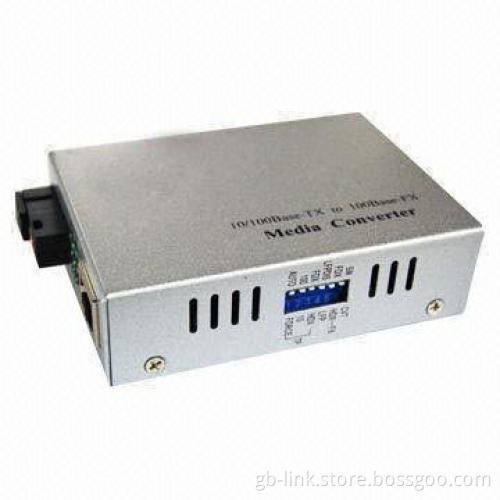

1,550T/1,310R WDM Media Converter with 10/100Mbps Data Rate, Single Mode
  • 1,550T/1,310R WDM Media Converter with 10/100Mbps Data Rate, Single Mode
1,550T/1,310R WDM Media Converter with 10/100Mbps Data Rate, Single Mode

1,550T/1,310R WDM Media Converter with 10/100Mbps Data Rate, Single Mode

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Data rate: 10 or 100Mbps
    • Optical wavelength: 1,550T/1,310R
    • Fiber types: single-mode, 9 or 125μm
    • Connector types: SC/PC, ST/PC and FC/PC
    • Maximum distance: 20, 40, 60 and 80km
    • Power supply: 1A, 5V DC ±5%
    • AC/DC power adapter:
      • AC input: 85 to 265V AC, 50/60Hz
      • DC output: 1A, 5V DC
    • Temperature:
      • Operating: 0 to 70°C
      • Storage: -40 to 80°C
    • Relative humidity range: 5 to 90% RH (non-condensing)
    • 10/100Mbps converter dimensions: 119 x 71 x 26mm
  • Data rate: 10 or 100Mbps
  • Optical wavelength: 1,550T/1,310R
  • Fiber types: single-mode, 9 or 125μm
  • Connector types: SC/PC, ST/PC and FC/PC
  • Maximum distance: 20, 40, 60 and 80km
  • Power supply: 1A, 5V DC ±5%
  • AC/DC power adapter:
    • AC input: 85 to 265V AC, 50/60Hz
    • DC output: 1A, 5V DC
  • Temperature:
    • Operating: 0 to 70°C
    • Storage: -40 to 80°C
  • Relative humidity range: 5 to 90% RH (non-condensing)
  • 10/100Mbps converter dimensions: 119 x 71 x 26mm
  • AC input: 85 to 265V AC, 50/60Hz
  • DC output: 1A, 5V DC
  • Operating: 0 to 70°C
  • Storage: -40 to 80°C
