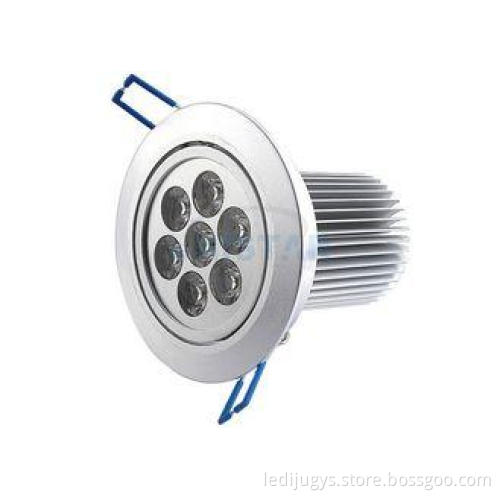

14W Recessed LED Downlight, 7pcs 2W Cree LED Ceiling Lights, Replacement 100W
Description:
- Cree/Edison/Epistar LED
- AC85~265V input options
- 14W power consumption
- (Cut-out) Installation Hole size Φ92mm
- Warm white Pure white Cool white
- Luminous Efficiency 80-110Lm/W
- 30º 45º 60º 90°beam angle
- Use 6063 air-craft aluminum
- Equiv to 100W halogen lamp
- Up to 70% energy savings
- 3 Year Warranty
- CE RoHS TUV UL compliant
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Tech Date |
|
|
|
Model |
US-DL-R7X2W |
|
|
LED Qty |
7pcs 2W high power LED |
|
|
LED Type |
Cree Edison Epistar |
|
|
LED Power |
14W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC85~265V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>98 |
|
|
Power Efficiency |
>85% |
|
|
Luminous Efficiency |
80~110LM/W |
|
|
Dimension |
Φ106 x H86mm |
|
|
Color Temperature |
WW |
2700-3500K |
|
PW |
4000-5500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>73 |
|
PW / CW |
Ra>78 |
|
|
Lumens Output |
WW |
810lm |
|
PW |
870lm |
|
|
CW |
930lm |
|
|
Beam Angle |
30° 45° 60° 90° |
|
|
(Cut-out)Hole size |
Φ92mm |
|
|
Working Temperature |
-40℃ ~ +55℃ |
|
|
Storage Temperature |
-25℃ ~ +65℃(25℃ best) |
|
|
Life span |
35000~50000hrs |
|
|
Certification |
CE, RoHS, FCC |
|
Curve of light distribution & Lux distance(Ta=25℃±3℃)
Comparison of color temperature:
Diagram of degradation for Luminous:
Comparison of Lifetime:
|
|
Halogen Downlight |
6000,hours lifetime |
Increase the |
|
|
LED Downlight |
50000,hours lifetime |
long time with |
LED Downlights dimension (unit: mm)
Installation Instruction:
Package:
Application:
1) Recessed lighting, shelf lighting, ceiling/wall coves
2) Cabinet and under counter lighting, office work station
3) Back lighting, step lighting, light boxes
4) Merchandising, exhibition stands, and panels
