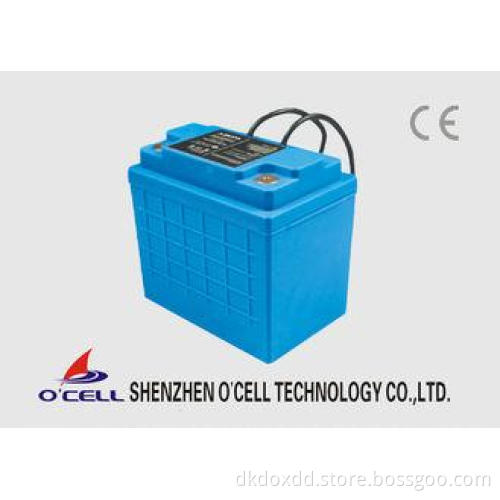

IP56 Water Resistance Lithium ion LiFePO4 Battery Module 12
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
Specifications:
|
Item |
IFM12-400E1 |
|
|
Nominal Voltage |
12.8V |
|
|
Nominal Capacity(0.5C) |
40Ah |
|
|
Dimensions Including Terminals(L*W*H) |
195*130*182mm |
|
|
Approximate Weight |
6.1Kg |
|
|
Terminals, Female-threaded |
M6*1.25 |
|
|
Specific Energy |
84Wh/kg |
|
|
|
Max. Constant Current |
80A |
|
Standard Discharge |
Max. Pulse current(30S) |
120A |
|
|
Cut-off Voltage |
10V |
|
|
Charge Voltage |
14.6V |
|
Standard Charge |
Max. Constant Current |
20A |
|
|
Charge Time |
2.5hrs |
|
DC Internal Resistance (Approx.) |
15mΩ |
|
|
Water/Dust Resistance |
IP56 |
|
Description:
O'CELL integrates the slave module (PCBA) into batteries and developed a distinctive series of battery module. BMU will manage the whole system by opening/closing the contactor.
1. Interchangeable design to replace Lead Acid Battery.
2. The system can be scaled up by connecting modules in series and parallel.
3. IP56 dust and water proof design for the housing.
4. LED indicator will show the state of battery module.
5. High accuracy SOC.
Applications:
1. Eco battery power system for light electric vehicle, HEV, EV, etc.
2. Energy storage system for solar, wind or solar-wind system, etc.
3. Backup power system for telecom base station, communication equipments, power grid, banks, UPS, etc.
IFM12-400E1 Battery Module Features
² Modules communicate via RS485 by BMU(Battery Management Unit)
² Inter-module & intra-module balancing via BMU
² Enhanced SOC calculation via BMU
² Charge and discharge control via BMU
² Temperature monitor via BMU
² Isolation measurement via BMU
² Easy installation up to 60KWh system in series & parallel
² Rugged mechanical and easy handling design
² Built in LED battery status indicator
² Can be charged with most lead-acid chargers
² Thousands of cycles under normal conditions
Competitive Advantage:
1. Intrinsic Safety from LiFePO4 Material
Lithium ion battery made with O'CELL LiFePO4 cathode material can pass the safety tests easily such as nail test, 3C/15V over-charge test, etc.
2. 2.Better Shelf Life
The shelf life of lithium ion battery can be measured by capacity retention at full charge state. Usually, the capacity loss of self-discharge can be divided into recoverable and irrecoverable capacity. O'CELL LiFePO4 has excellent shelf life. The self-discharge rate is about 3% per month, the capacity can recover up to 98% after long time storage.
3. 3.Good Rate Performance
The discharging voltage platform of O'CELL LiFePO4 battery is flat. LiFePO4 power battery has good rate performance, the capacity @20C is more than 95% of 1C discharging capacity at room temperature. The maximum temperature rise is less than +20ºC.
4. Wider Operation Temperature
1.Operation temperature range:-20~+60℃;
2.Storage temperature range:-40~+60℃;
3.The capacity at -20℃ is more than 70% that of +25℃;
4.The capacity at +60℃ is more than 98% that of +25℃.
5. Excellent Cycle Life
During charging and discharging, the cathode (LiFePO4) and anode (graphite) in battery cause little changes of total volume. The small volume change will bring little internal stress to the separator, which will be helpful for the battery safety and cycle life. After 3,000 cycles, the residual capacity of O'CELL LiFePO4 battery is more than 75% of that of nominal capacity.
