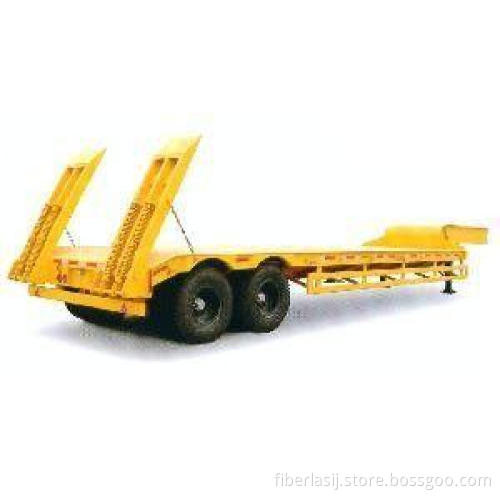

2 Axles Low Bed Semi Trailer/ Low Bed Semi-Trailer

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Overall Dimension
Length(mm) 12340
Width(mm) 2490
Height(mm) 1650
Tare Weight(kg) 4900
Payload(kg) 31000
Total Weight(kg) 35900
Quantity of Axle 2
Wheelbase(mm) 7950+1305
Wheel Track(mm) 1840
Leaf Spring 11
Tyre 11.00-R20
Quantity of Tyre 8
II. STANDARD SPECIFICATION
NO. Products Technical Specification, Brand, etc
1 Main Frame 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm, Upper Flange thickness: 16mm; Under Flange thickness: 16mm; Ventral Flange thickness: 6mm
2 Axle FUWA, YORK or BPW, 10 bolts
3 Landing Gear 28T capacity, gear outside.
4 Pneumatic Braking System SEALCO brand
5 Air Chamber 2 PCS double type, 2 PCS single type
6 Suspension WONDEE brand
7 Leaf Spring 11 leaves
8 Kingpin 2" welding type
9 Electrical System 24V
10 Wheel Rim wheel rim 8.0-20
11 Tyre 11.00-20-12PR, 8PCS
12 Mud Guard Reinforce Plastic Mud Guard
13 Tool Box without
14 Flexible Side Guardrail Optional.
.&
