Heavy Duty Copper Tube Terminal Crimping Tool for Electrica

The crimping tools is used for nonwelding and standard electrical connection. The mould of the
crimping dies is made of SCM40 hardest tool steel. It is with the characteristics of long life, accurate bore diameter and good crimping effect.Cu, Al Terminal Crimping

Part Numbers

Range of Application

Capacity

Length

Weight

HX-50B

BS Standard type terminals

6.0-50 mm²

390mm

1.3Kg

HX-50T

BS Standard type terminals

6.0-50 mm²

390mm

1.3Kg

HX-50SC

For SC cable lugs

6.0-50 mm²

390mm

1.3Kg

HX-50D

For DIN46235 copper terminals

6.0-50 mm²

390mm

1.3Kg

HX-120D

BS Standard type terminals

6-120 mm²

620mm

4Kg

HX-120B

BS Standard type terminals

10-120 mm²

620mm

4Kg

HX-120T

BS Standard type terminals

16-120 mm²

620mm

4Kg

HX-150B

BS Standard type terminals

25-150 mm²

620mm

4Kg

HX-150SC

For SC cable lugs

25-150 mm²

620mm

4Kg

HX-245B

BS Standard type terminals

70-240 mm²

980mm

5.6Kg

Crimping pliers is applicable for non-welding crimping complied with standard electical connection. The material of the dies is accurate SK-5 tool steel with long life. Adjust the jaw diameter according to the sizes of terminals.

Part Numbers

Range of Application

Capacity

AWG

Length

Weight

CT-38

Large Y.O terminal

8-38mm²

8-2

570mm

2.2Kg

CT-80

Large Y.O terminal

8-95mm²

8-3/0

635mm

3.2Kg

CT-150

Large Y.O terminal

16-150mm²

8-250/300MCM

765mm

5.2Kg

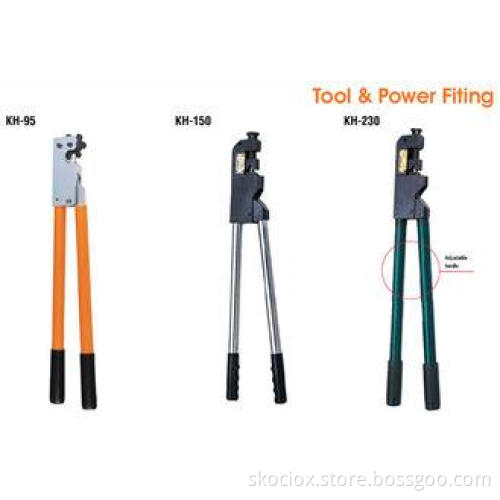

The crimping tools is used for nonwelding and standard electrical connection. All the components are made of special steel, treated by special quenching and annealing.The head of the mouth tool has been polished. The tools is with the characteristics of long life and the diameter of the crimping month can be adjusted according to the size of the terminal.

Part Numbers

Range of Application

Capacity

AWG

Length

Weight

KH-95

Naked terminal

16-95mm²AL/CU

6-3/0

630mm

3.6kg

KH-150

Naked terminal

8-95mm²

8-250MCM

610mm

3.1kg

KH-230

Naked terminal

16-150mm²

8-500MCM

980mm

4.7kg

HS35K Interchangcable molds

HS22K Telescopic handle

■Interchangeable molds
■Open-type pressare connector
■Head free to rotate360°
■Telescopic handle

■Interchangeable molds
■Open-type pressare connector
■Head free to rotate360°
■Telescopic handle

HS-300JYX1 Interchangcable molds

■Open-type pressare connector
■Head free to rotate360°
■Telescopic handle
