FTTH, Data Center used LC / APC Duplex Fiber Optic Adapter
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|
Quick Detail:
1. LC duplex adapter
2. With flange for screws
3. Singlemode PC, singlemode APC and multimode PC available

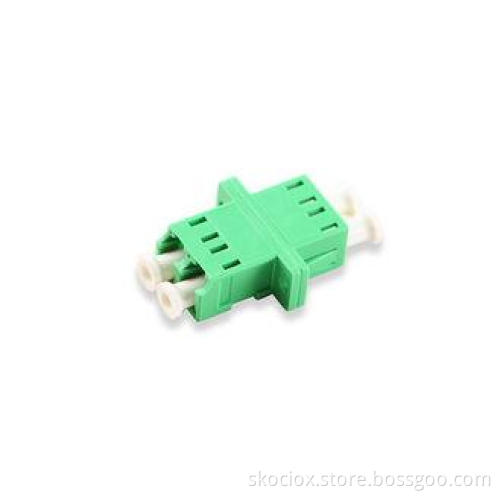

FTTH, Data Center used LC / APC Duplex Fiber Optic Adapter with Flange
Description:
FOCONEC offers Simplex, duplex & quad LC adapters with plastic housing. All LC duplex & quad adaptors have more options, with or without flanges, and in SC-footprint or Square mount styles.
All our adaptors come with a choice of zirconia or phosphor bronze straight split sleeves. For customized requirement, the housing in a variety of colors are available.
Features:
1. High precision of mechanical dimensions
2. Excellent compatibility, reliability & stability
3. Single-mode and multimode available
4. With or without flange available
5. NTT, Telcordia, ANSI, TIA/EIA standard compliance
Order Guide:
|
Product Description |
Part Number |
Housing Color |
|
LC Duplex Single-mode With Flange |
AD-LCDF-SM |
Blue |
|
LC/APC Duplex Single-mode With Flange |
AD-LCDF-SMA |
Green |
|
LC Duplex Multimode With Flange |
AD-LCDF-MM |
Beige |
|
LC Duplex OM3 With Flange |
AD-LCDF-OM3 |
Aqua |
Applications:
1. Fiber optic transmission system
2. CATV networks
3. Local Area Network
4. FTTH and FTTX
5. Testing equipment
Specifications:
|
Connector Type |
LC, SC, FC, MU, ST, MTRJ, Hybrid |
|
|
Fiber Type |
Singlemode |
Multimode |
|
Insertion Loss |
≤0.2dB |
|
|
Return Loss |
PC≤-45dB; UPC≤-50dB; APC≤-60dB |
≤-30dB |
|
Durability |
≤0.2dB, after 1000 times |
|
|
Operation Temperature |
-40℃~+75℃ |
|
|
Storage Temperature |
-40℃~+85℃ |
|
Competitive Advantage:
1. Full range of adapters available
2. Fast delivery time
3. Custom colors available
Tag: Fiber Optic Adaptor, Fiber Optic Coupler, Passive Component, Fiber Connectivity, Fiber Mating Sleeve
