LC Simplex Fiber Optical Adapter, Single Mode / Multimode F
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|
Quick Detail:
1. LC Simplex adapter / mating sleeve
2. Singlmode PC blue, singlemode APC green, multimode PC Beige, Mutimode OM3 aqua available

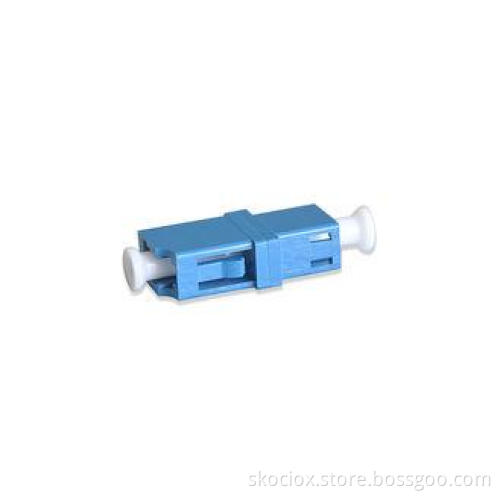

LC Simplex Fiber Optical Adapter, Single Mode / Multimode Fiber Optic Coupler and Mating Sleeve
Description:
FOCONEC offers Simplex with plastic housing. All our adapters come with a choice of zirconia straight split sleeves. For different mode types, the housing in a variety of colors are available.
Features:
1. High precision of mechanical dimensions
2. Excellent compatibility, reliability & stability
3. Single-mode and multimode available
4. With or without flange available
5. NTT, Telcordia, ANSI, TIA/EIA standard compliance
Order Guide:
|
Product Description |
Part Number |
Housing Color |
|
LC Simplex Single-mode Without Flange |
AD-LCQNF-SM |
Blue |
|
LC/APC Simplex Single-mode Without Flange |
AD-LCQNF-SMA |
Green |
|
LC Simplex Multimode Without Flange |
AD-LCQNF-MM |
Beige |
|
LC Simplex OM3 Without Flange |
AD-LCQNF-OM3 |
Aqua |
Applications:
1. Fiber optic transmission system
2. CATV networks
3. Local Area Network
4. FTTH and FTTX
5. Testing equipment
Specifications:
|
Connector Type |
LC, SC, FC, MU, ST, MTRJ, Hybrid |
|
|
Fiber Type |
Singlemode |
Multimode |
|
Insertion Loss |
≤0.2dB |
|
|
Return Loss |
PC≤-45dB; UPC≤-50dB; APC≤-60dB |
≤-30dB |
|
Durability |
≤0.2dB, after 1000 times |
|
|
Operation Temperature |
-40℃~+75℃ |
|
|
Storage Temperature |
-40℃~+85℃ |
|
Competitive Advantage:
1. Good compatibility
2. High precision of mechanical dimensions
3. High reliability & stability
4. Fast delivery time
Tag: Fiber Optic Adapter, Fiber Optic Coupler, Passive Component, Fiber Connectivity
