High Breaking Capacity Breaker, Mini Circuit Breaker , MCB
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|
High Breaking Capacity Breaker, Mini Circuit Breaker , MCB, 3 phase MCB, 10KA, 1POLE, 2POLE, 3POLE, 4POLE
Factory Profile
Our factory WENZHOU HUAJIA ELECTRICAL EQUIPMENT CO.,LTD is founded in 1995, with more than 3500 square meters manufacturing space, 400 employees, it becomes one of the leading manufacturer of industrial electric product in China. And we have nearly 20 years experience in producing and exporting. Our products export to more than 30 countries and win a good reputation from our customers. In 2013, our export amount up to 200million US dollors.
Quick Detail:
Place of Origin: China
- Brand Name: VECAS
- Certificate:CE
- Electricity Type: AC
- Phase::3 Pole: 4
- Rated voltage: AC240/415V
- Rated current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Description:

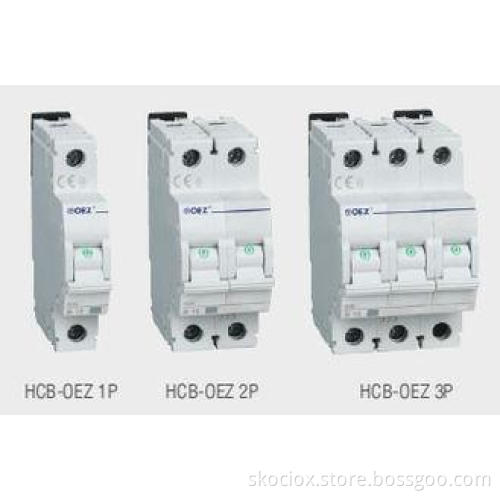

HCB-OEZ Mini Circuit Breaker Specification and Feature :
■ Protection against both overload and short circuit
■ High breaking capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection
Technical Data
Pole No. 1, 2, 3, 4 Rated voltage AC 240/415V Rated current (A) 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 Tripping curve B, C, D Rated breaking capacity (Icn) 4500A, 6000A Rated frequency 50/60Hz Rated impulse withstand voltage 6.2kV Electro-mechanical endurance 6000 Contact position indication Connection terminal Screw terminal Pillar terminal with clamp Connection capacity Rigid conductor up to 25mm2 Fastening torque 2.0 Nm Installation On symmetrical DIN rail 35mm
Specifications and Feature :
■ Protection against both overload and short circuit
■ High breaking capacity
■ Contact position indication
■ Applicable to terminal and pin/fork type busbar connection
Technical Data :
|
Pole No. |
1, 2, 3, 4 |
|
Rated voltage |
AC 240/415V |
|
Rated current (A) |
1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
|
Tripping curve |
B, C, D |
|
Rated breaking capacity (Icn) |
4500A, 6000A |
|
Rated frequency |
50/60Hz |
|
Rated impulse withstand voltage |
6.2kV |
|
Electro-mechanical endurance |
6000 |
|
Contact position indication |
|
|
Connection terminal |
Screw terminal |
|
Pillar terminal with clamp |
|
|
Connection capacity |
Rigid conductor up to 25mm2 |
|
Fastening torque |
2.0 Nm |
|
Installation |
On symmetrical DIN rail 35mm |
|
Panel mounting |
Factory Profile
Our factory WENZHOU HUAJIA ELECTRICAL EQUIPMENT CO.,LTD is founded in 1995, with more than 3500 square meters manufacturing space, 400 employees, it becomes one of the leading manufacturer of industrial electric product in China. And we have nearly 20 years experience in producing and exporting. Our products export to more than 30 countries and win a good reputation from our customers. In 2013, our export amount up to 200million US dollors.
Our Service
1. Samples: provide free samples
2. Package: all products will be well packed before shipping
3. Warranty: all products have 2-5 years warranty
4. Delivery: within 30days after received the deposit.
5. Provide OEM and ODM service
6. We can help you with any of your idea to design and put it into production.
7.Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...
Our Products Line:
Our Certificate:
Professional mini circuit breakers (MCB) supplier:
