DIN Rail MCB, Mini Circuit Breaker (MCB) , 6KA, Single Pole
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Ningbo, China (Mainland) |
|---|

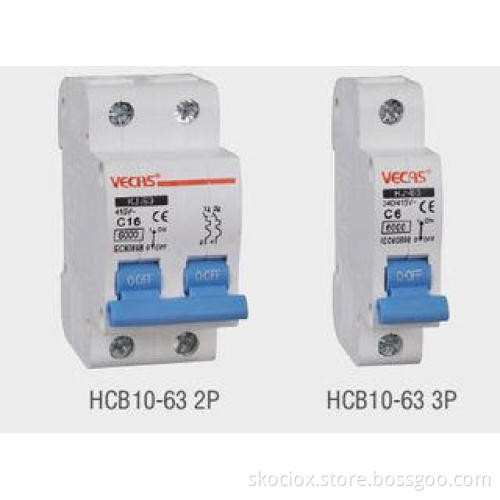

DIN rail MCB, Mini Circuit Breaker (MCB) , 6KA, Single Pole, 2 Pole, 3 Pole, 4Pole
Quick Detail:
- Place of Origin: China
- Brand Name: VECAS
- Certificate:CE, CB
- Pole No.: 1, 2, 3, 4
- Tripping Curve: B, C
- Rated Voltage: AC240/415V
- Rated Current :1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
- Rated Breaking Capacity: 6000A(6KA)
Specifications and Feature :
■ Protection against both overload and short circult
■ Higt breaking capacity
■ Easy mounting onto 35mm DIN rail
Technical Data
|
Pole No. |
|
|
Rated voltage |
240/415V AC |
|
Rated current (A) |
1,2,3,4,6,10,16,20,25,32,40,50,63 |
|
Tripping curve |
B,C |
|
Rated breaking capacity (Icn) |
6000A |
|
Rated frequency |
50/60Hz |
|
Energy limiting class |
3 |
|
Rated impulse withstand voltage |
6.2kV |
|
Electro-mechanical endurance |
6000 |
|
Connection terminal |
Pillar terminal with clamp |
|
Connection capacity |
Rigid conductor up to 25mm 2 |
|
Fastening torque |
2.0Nm |
|
Installation |
On symmetrical DIN rail 35mm |
|
Panel mounting |
Our Service
1. Samples: provide free samples
2. Package: all products will be well packed before shipping
3. Warranty: all products have 2-5 years warranty
4. Delivery: within 30days after received the deposit.
5. Provide OEM and ODM service
6. We can help you with any of your idea to design and put it into production.
7.Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...
Our Products Line:
Our Certificate:
Professional mini circuit breakers (MCB) supplier:
