Foam swab MT-FS740 for printhead cleaning

Texwipe TX740B Foam Swab - Meditech FS740 Foam Swab

Product Description

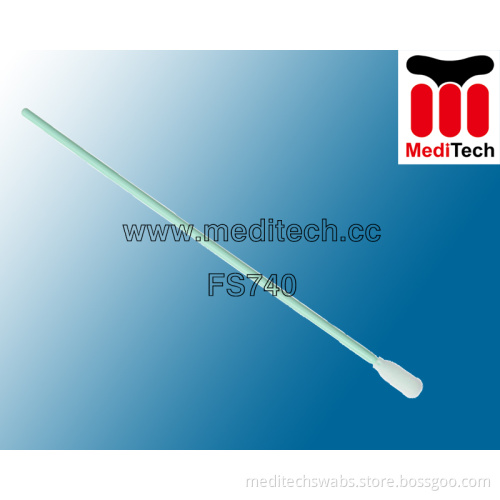

Cleanroom Foam Swab FS740(Compatible with Texwipe TX740B)
(Medium Foam Swab with flexible internal paddle head long handle)

Description:
Meditech`s Medium Foam Swab FS740 features flexible internal paddle head with long handle providing good support and cushion. It is constructed from 100 ppi open-cell polyurethane foam and is the ideal swab to use to effectively in eliminating contamination on surfaces and hard to reach areas. Its cleanroom laundered foam head possesses high solvent capacity.
Flexible Paddle Foam Swab FS740 is free from organic contaminants such as silicone, amide and phthalate esters.
It features very low non-volatile residue (NVR), ion content and particle generation.
This swab can replace typicallong-handled cotton swabs in applications requiring superior
cleanliness.

Features:
- Free from silicone, amide and DOP.
- Low in particles, ion content and non-volatile residue.
- ESD safe permanent static dissipative handle is available as option.
- Thermally bonded foam head.
- High solvent capacity, soft and non-abrasive.
- Compatible with most common solvents.
- Design: Flexible head paddle with long handle
- Available in 3.5" Handle for Economic Cost Saving.

Applications:
- Cleaning with solvents such as IPA.
- Cleaning surfaces and hard to reach areas.
- Applying lubricants or other liquids
- Remove flux residues and excess materials.
- For general purpose cleaning.

Packaging:
500 swabs / bag;
5 inner bags of 100 swabs;
30 bags /case

Specification and Application

Cleanroom Foam Swab FS740

PHYSICAL CHARACTERISTICS
_________________________________________________________________
Property Description
_________________________________________________________________
Foam Head 100 ppi (Z) open-cell
Head Bond Thermal
Handle Material Polypropylene
HANDLE SPECIFICATION DATA
_________________________________________________________________

CONTAMINATION CHARACTERISTICS
_________________________________________________________________
Particles, Readily releasable
Particles > 0.5 um < 25000 counts/swab
_________________________________________________________________
Non-volatile Residue
DI Water < 0.15 mg/swab
IPA < 0.40 mg/swab
Ion Content
Chloride < 0.90 ug/swab
Sulphate < 0.40 ug/swab
Total Anions < 1.30 ug/swab
_________________________________________________________________
Organic Contamination
No detectable silicone, amide or DOP.

ESD CHARACTERISTICS ( Optional for FS740E)
_________________________________________________________________
Handle Resistivity 10×10 8-9 Ohms/Sq
