Quick Detail:
Microelectronic Power IC Relay Dual Pole, Normally Open 0-400V, 120mA AC/DC
Description:
PVT422P is ideally suited for PCMCIA card
applications. Its extremely low profile allows it to be
used in Type II cards whose outer shells are only
5mm thick.

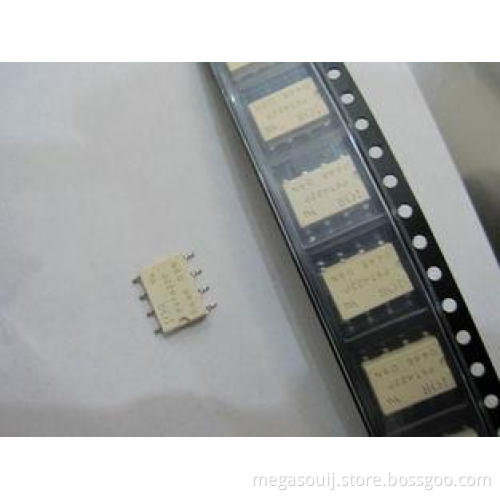

Series PVT422P Relays are packaged in an 8-pin,
molded ‘Thin-Pak’ DIP package with ‘gull-wing’
surface mount terminals. It is available in plastic
shipping tubes or on tape-and-reel. Please refer to
Part Identification (opposite) for details.
Applications:
On/Off Hook switch
Dial-Out relay
Ring injection relay
General switching
Specifications:
Datasheets | PVT422P |
Standard Package | 50 |
Category | Relays |
Family | Solid State Relays |
Series | PVT, HEXFET® |
Packaging | Tube |
Circuit | DPST (2 Form A) |
Output Type | AC, DC |
On-State Resistance | 35 Ohm |
Load Current | 120mA |
Voltage - Input | 1.2VDC |
Voltage - Load | 0 ~ 400 V |
Mounting Type | Surface Mount |
Termination Style | Gull Wing |
Package / Case | 8-SMD (0.300", 7.62mm) |
Supplier Device Package | Thin-Pak |
Relay Type | Relay |
Other Names | *PVT422P |
