17" led lcd touch screen monitor with tft vga Great A touch display for pos tv computer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

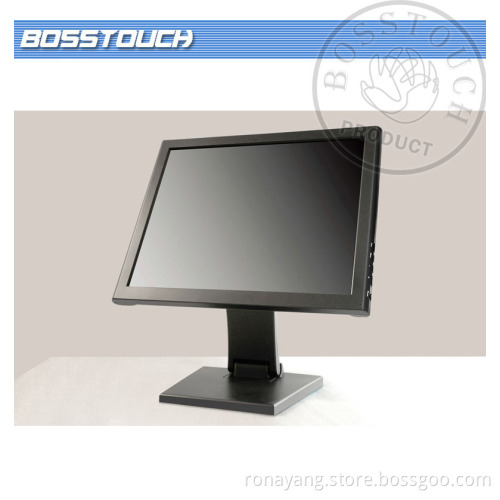

17" LED/LCD touch screen monitor with tft vga Great A touch display for pos tv computer

1)CE,RoHS,FCC

2)Fatory direct sale

3)Samsung brand panel

4)mature technique, stable quality, high cost performance

Product Description

manufacture: Bosstouch
manufacture part# :C1702HT LED
Type: Flat panel display / TFT active matrix
Dot Pitch / Pixel Pitch : 0.264 mm
Max Resolution: 1280 x 1024 / 75 Hz
Max Sync Rate (V x H): 76 Hz x 81.1 kHz
Response Time: 5/mm
Features: Auto Brightness, Stabilization, BrightRegulator
Brightness: 300 cd/m2
Contrast Ratio : 1000:1
Image Max H-View Angle: 178° Image Max V-View Angle: 178°
Voltage Required AC 100 - 240 V ( 50/60 Hz )
Power consumption: 38 W
Operating temperature: 0 - 50 °C
Storage temperature: -20 - 60 °C
working time:50000hours. Touch times:>1,000,000/dot
horizontal frequency:30-80KHZ field frequency:56-75HZ
interface: VGA/SVGA/XVGA + USB + POWER + DVI ( Optional )
signal input:Analog RGB
touch type: resistance touch≥20MΩ(25V DC) 4-wire & 5-wire (optional)
touch Linearity: ≤1.5% Transmittance:≥85%
Operated System is WIN9X,2000,ME,CE/UNIX
Plastic Case size: 39 * 6.8 * 32 (unit: cm) W/O stands
stand: H 10.5cm, Adjustable stand
Inner box size:(1pcs) 44 * 38.0 * 14.5 (unit: cm) 5.5kg
Cartoon Box Size: (5pcs) 46 * 40.5 * 75 (unit: cm) 30.5kg
Accessories: Touch Pen, CD-ROM drive, USB computer connection, power supply, VGA connection, manuals.
install model:desk/standard aperture of VESA

manufacture: Bosstouch

manufacture part# :C1702HT LED

Type: Flat panel display / TFT active matrix

Dot Pitch / Pixel Pitch : 0.264 mm

Max Resolution: 1280 x 1024 / 75 Hz

Max Sync Rate (V x H): 76 Hz x 81.1 kHz

Response Time: 5/mm

Features: Auto Brightness, Stabilization, BrightRegulator

Brightness: 300 cd/m2

Contrast Ratio : 1000:1

Image Max H-View Angle: 178°
Image Max V-View Angle: 178°

Voltage Required AC 100 - 240 V ( 50/60 Hz )
