24 Key DC5V, 12V, 24V led Infrared RGB PWM Controller for o
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

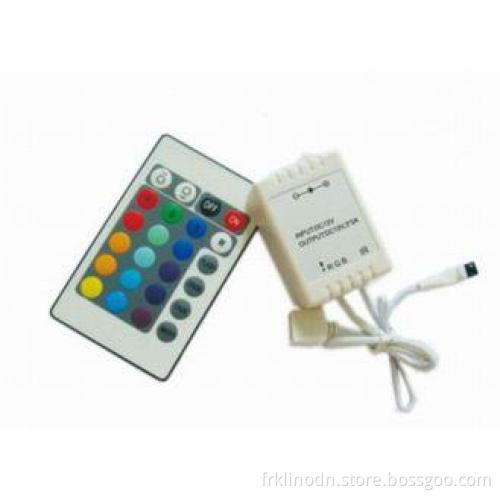

24 Key DC5V, 12V, 24V led Infrared RGB PWM Controller for orders Specify voltage
Descrition:
01, 24-key Infrared RGB controller,
02, Working temperature: -20-60,
03, Supply voltage: DC5V, 12V, 24V
Specify voltage),
04, 0utput: 3 channels, Connecting mode: Common anode,
05, External dimension: L89.2*W70*H27.5 mm, Packing size: L160*W95*H51 mm,
06, Gross weight: 85 g,
07, Static power consumption: <1 W, Output current: <2 A
(each channel), Output power: 5 V: <30W, 12V: <72W, 24V: <144W
Applications:
This controller is designed to be used exclusively with LED lighting.
Specifications:
|
Input Voltage |
Output Current |
Output Power |
Dimension (mm) |
Weight (G.W.) |
|
12~24V DC |
2A*3channel |
|
89.2*70*27.5 |
85g |
Competitive Advantage:
01, fast delivery
02, CE, RoHS certificates
03, TWO YEARS' WARRANTY
04, easy to use
