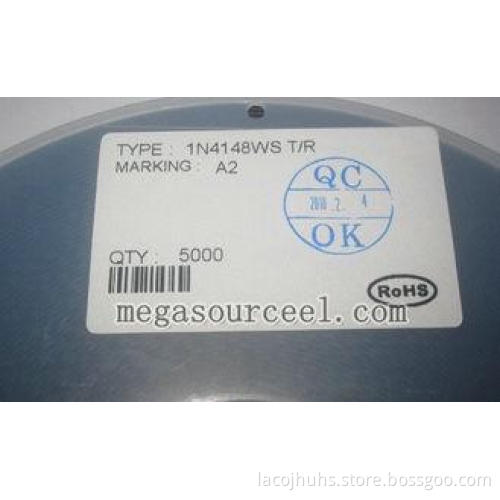

NPN PNP Transistors 1N4148WS - Diodes Incorporated - SURFAC
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|
Quick Detail:
SURFACE MOUNT FAST SWITCHING DIODE
Description:
Case: SOD-323, Plastic
Plastic Material - UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020A
Polarity: Cathode Band
Terminals: Solderable per MIL-STD-202, Method 208
Marking: T4, T6
Weight: 0.004 grams (approx.)
Applications:
Fast Switching Speed
Ultra-Small Surface Mount Package
For General Purpose Switching Applications
High Conductance
Specifications:
Datasheets | 1N4148WS, BAV16WS Datasheet |
Product Photos | SOD-323,SC-76 |
Catalog Drawings | SOD-323 Side 1 |
PCN Design/Specification | Bond Wire 16/Sept/2008 |
Standard Package | 3,000 |
Category | Discrete Semiconductor Products |
Family | Diodes, Rectifiers - Single |
Series | - |
Packaging | Tape & Reel (TR) |
Diode Type | Standard |
Voltage - DC Reverse (Vr) (Max) | 75V |
Current - Average Rectified (Io) | 150mA |
Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA |
Speed | Small Signal =< 200mA (Io), Any Speed |
Reverse Recovery Time (trr) | 4ns |
Current - Reverse Leakage @ Vr | 1µA @ 75V |
Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
Mounting Type | Surface Mount |
Package / Case | SC-76, SOD-323 |
Supplier Device Package | SOD-323 |
Catalog Page | 1230 (CN081 PDF) |
Other Names | 1N4148WS-FDITR |
