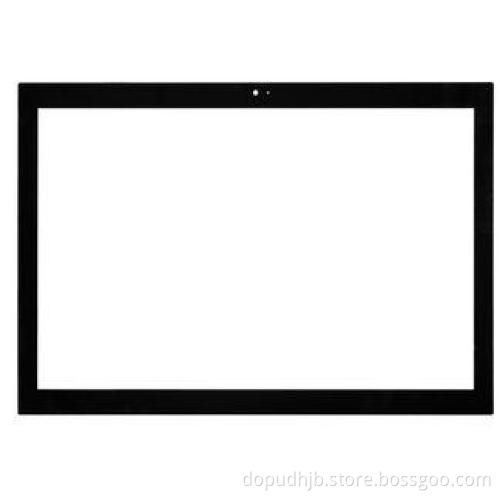

32Inch Glass+Glass Projected Capacitive Touch Panel with USB Interface
Quick detail:
1. size 32"
2. Structrue: G+G
3. Ten-point multi touch
4. Outline:467.62*778.02mm
|
№ |
Item |
Specification Standard projected capacitive touch panel with controller (interface:USB) |
|
1 |
Item NO. |
DPT-PCT-3200GG |
|
2 |
Detection method |
Projected Capacitive |
|
3 |
Size |
32" |
|
4 |
Active area |
398.8*709.2mm |
|
5 |
Outline dimension |
467.62*778.02mm |
|
6 |
Resolution |
25ppi(min) |
|
7 |
Input method |
Finger |
|
8 |
Touch action force |
30~60g |
|
9 |
Operating Voltage |
5V adjustable |
|
10 |
Operating current |
2.5~10mA Depends on IC |
|
11 |
Operating temperature |
-10°C~60°C |
|
12 |
Storage temperature |
-15°C~65°C ,＜90%RH;40°C~70°C,＜60%RH |
|
13 |
Humidity |
10%~90%RH at 40°C, non-condensing |
|
14 |
Relative humidity |
10%~90%RH at 40°C, non-condensing |
|
15 |
Response time |
<35ms |
|
16 |
Transparency |
≥82% depends on the quantity of layers |
|
17 |
Surface hardness |
≥7H |
|
18 |
Material structure |
Glass to Glass |
|
19 |
Thickness |
3.28±0.1mm |
|
20 |
Light transmission |
92%~100% |
|
21 |
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure |
|
22 |
Drivers available |
Windows 2000,Windows XP,Windows NT,Linux,Mac |
|
23 |
Certificates |
CE, FCC, RoHS |
|
24 |
Working environment |
Under sunlight,indoor and outdoor |
|
25 |
Finger Touch life |
≥35,000,000 times |
|
26 |
Warranty |
1 year |
