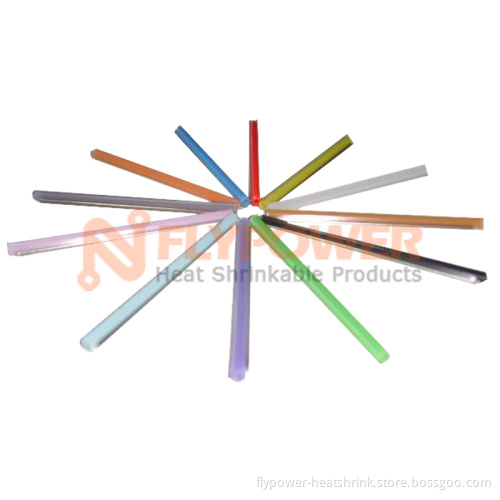

Single Heat Shrinkable Fiber Optic Splice Protector BH-FSP
Application:
BH-FSP single heat shrinkable fiber optic splice protector is consist of cross linked polyolefin,
hot fusion tubing and stainless reinforcing steel rod, keep optic transmission properties of optical fiber,
provide strength and protection to optical fiber splices.
Features:
1) Easily use and avoid any damaged to the optical fiber during installation;
2) Clear sleeve make it easy to detect splice before shrinkage;
3) Sealing structure make the splice free from effect of temperature and humidity from environment;
4) Operating temperature: -45°C to +100°C;
5) Minimum fully recovery temperature: 120°C;
6) Colors: Transparent, other colors available on request.
Technical data:
|
Property |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D 2671 |
≥18 MPa |
|
Ultimate elongation |
ASTM D 2671 |
700% |
|
Density |
ISO R 1183 D |
0.94g/cm² |
|
Dielectric strength |
IEC 243 |
20KV/mm |
|
Dielectric constant |
IEC 243 |
2.5 max. |
|
Longitudinal change |
ASTM D2671 |
±5%. |
Product Dimensions (mm):
|
Model No. |
Splice Protection Sleeve (After Shrinking) |
Fusion tube |
Steel Rod |
Packing (pcs/bag) |
|||
|
O.D (±0.2mm) |
Length (±1mm) |
I.D (±0.1mm) |
Length (±1mm) |
O.D (±0.1mm) |
Length (±1mm) |
||
|
BH-FSP-61/1.5 |
3.0 |
61 |
1.4 |
61 |
1.5 |
55 |
100 |
|
BH-FSP-45/1.5 |
3.0 |
45 |
1.4 |
45 |
1.5 |
40 |
100 |
|
BH-FSP-40/1.5 |
3.0 |
40 |
1.4 |
45 |
1.5 |
35 |
100 |
|
BH-FSP-25/1.5 |
3.0 |
25 |
1.4 |
25 |
1.5 |
20 |
100 |
|
BH-FSP-61/1.2 |
2.6 |
61 |
1.4 |
61 |
1.2 |
55 |
100 |
|
BH-FSP-45/1.2 |
2.6 |
45 |
1.4 |
45 |
1.2 |
40 |
100 |
|
BH-FSP-40/1.2 |
2.6
|
40 |
1.4 |
45 |
1.2 |
35 |
100 |
|
BH-FSP-25/1.2 |
2.6 |
25 |
1.4 |
25 |
1.2 |
20 |
100 |
|
BH-FSP-61/1.0 |
2.4 |
61 |
1.4 |
61 |
1.0 |
57 |
100 |
|
BH-FSP-45/1.0 |
2.4 |
45 |
1.4 |
45 |
1.0 |
41 |
100 |
|
BH-FSP-40/1.0 |
2.4 |
40 |
1.4 |
40 |
1.0 |
35 |
100 |
|
BH-FSP-30/1.0 |
2.4 |
30 |
1.4 |
30 |
1.0 |
25 |
100 |
|
BH-FSP-25/1.0 |
2.4 |
25 |
1.4 |
25 |
1.0 |
21 |
100 |
|
BH-FSP 40/0.8 |
2.2 |
40 |
1.4 |
40 |
0.8 |
40 |
100 |
|
BH-FSP 25/0.8 |
2.2 |
25 |
1.4 |
25 |
0.8 |
25 |
100 |
|
BH-FSP 18/0.8 |
2.2 |
18 |
1.4 |
18 |
0.8 |
18 |
100 |
|
BH-FSP 40/0.5 |
1.3 |
40 |
0.35 |
40 |
0.5 |
40 |
100 |
|
BH-FSP 25/0.5 |
1.3 |
25 |
0.35 |
25 |
0.5 |
25 |
100 |
|
BH-FSP 18/0.5 |
1.3 |
18 |
0.35 |
18 |
0.5 |
18 |
100 |
|
BH-FSP 15/0.5 |
1.3 |
15 |
0.35 |
15 |
0.5 |
15 |
100 |
|
BH-FSP 10/0.5 |
1.3 |
10 |
0.35 |
10 |
0.5 |
10 |
100 |
Other lengths and sizes are available on request.
