utp/ftp cat5e network lan cable
  • utp/ftp cat5e network lan cable
utp/ftp cat5e network lan cable

utp/ftp cat5e network lan cable

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Length 305m,500m,1000m
Color gray,red,yellow,white,black,orange
Jacket pvc,lszh
Connector gold connector,nickel connector
Metarial copper,cca,ccs
Length 305m,500m,1000m
Insulator PE
Conductor Material CU
Shielded Cable Yes

Detail Description

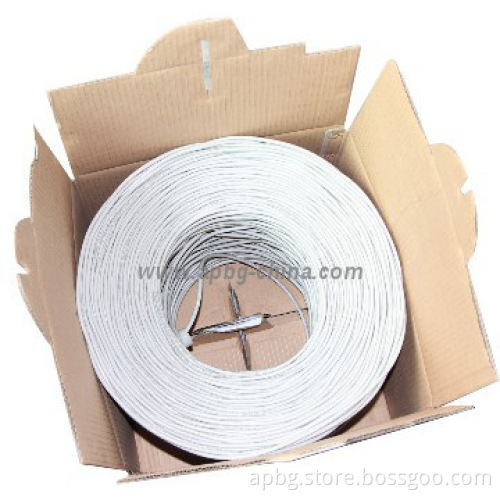

             utp/ftp cat5e network lan cable


Specifications

  •  24AWG Utp Cat5e Lan Cable,4 twisted pair,0.5-0.512mm

  • Conductor:solid or stranded BC,CU,CCA,CCAU,CCS,etc

  • New and environmental-friendly PVC jacket(minimum thickness of the shell 0.4 mm)

  • The external cable diameter of 5.1 ± 0.2 mm

  • bending radius: 8xO during installation, 6xO with vertical Cabling, 4xO the horizontal cabling

  • Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305 m

  • Weight 1 km of cable: 31.8 kg

  • Operating temperature: -20 ° C - +75 ° C

  • Fire: CM

  • Standards: UL444/UL1581, TIA / EIA 568B.2

  • Frequency: 155MHz

  • Transmission velocity: 200Mbps

Electrical Characteristics

  • Frequency(MHz): 1 10 62.5 100 155 200 350

  • Attenuation(dB/100m): 2.0 6.5 17.0 22.0 28.1 32.4 44.9

  • Impedance(ohm): 100 100 100 100 100 100 100

  • Return Loss(dB): 20 25 22 20 19 19 17

  • NEXT(dB/100m): 65.3 53.3 38.4 35.3 33.3 31.0 27.0

  • ELFEXT: (dB/100m): 63.8 43.8 27.8 23.8 20.0 18.0 13.0

  • PS NEXT(dB/100m): 62.3 47.3 35.4 32.3 29.0 28.0 24.0

Features

  •  24AWG Utp Cat5e Lan Cable Comply with the UL requirements

  • Transmission velocity:200Mbps

  • Premium quality

  • Guaranteed working year for 10~15 year

  • Pass ISO 9001:2000,UL,CE Standard,ROHS,FLUKE,etc

  • All cables far exceed the cable requirements TIA/EIA 568B & ISO/IEC11801 , UL444/UL1581,etc

  • Far exceed the cable requirements for NEXT,attenuation,structural renturn loss,attenuation-to-crosstalk ratio (ARC) and impedance

  • Application: 100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM

  • Reasonable price and good service for you

Additional Information

Payment Terms L/C, T/T, Money Order
Minimum Order 100
Lead Time / Delivery Time 10 Day(s)
Sample Available YES
Delivery Details 10day-fastdelivery time, FOB Shenzhen, HongKong,any one you need
FOB Port Hong Kong,Shenzhen,
Loading Info By sea, By air as you need
Packing Info 1 roll/inner box,2 inner box/outter box
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
