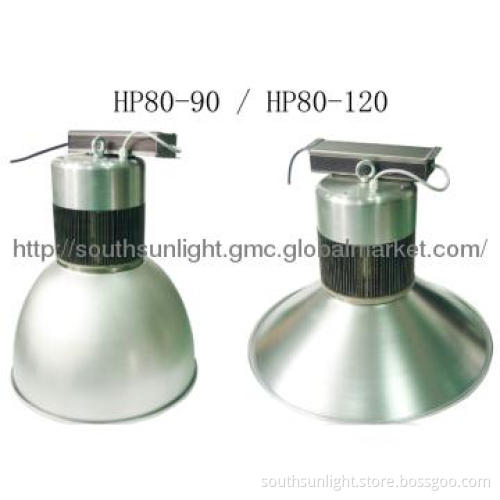

Newly design 200W high lumen LED high bay light
  • Newly design 200W high lumen LED high bay light
Newly design 200W high lumen LED high bay light

Newly design 200W high lumen LED high bay light

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Light Source LED
Voltage 220V
IP IP65
Material Aluminum

Detail Description

New Design 200W High Lumen LED High Bay Light

  • Wattage: 200W
  • Input Voltage: AC85V~265V 50-60HZ
  • T(Kelvin): Typical 6000k or 2700-6000k optional
  • Material: Aluminium+heat sink
  • Beam Angle: 60°、120°-160°
  • Light color available: White
  • Light Efficiency: 95lm/w  (45mil)
  •                     115lm/w (60mil)
  • Size:
  • Certification: CE RoHS
  • Warranty: 3years for 45 Mil Led Chip
  •                5years for 60 Mil Led Chip
  • Power Factor: ≥97
  • Rate Life: >50,000 hours. 85% lumen output left after 30,000hours.
  • Optional power: 30w 50w 80w 100w 120w 150w 180w 200w 250w 300w
  • Power: Mean Well
  • Power Efficiency: ≥85

Parameter

Description

Power

200W

Input Voltage

AC85~305V  50/60Hz

Light Efficiency

>95LM/W (45mil),  >120LM/W (60mil)

Flux

18900LM (45mil),  23800LM(60mil)

Power Factor

>0.98

Total harmonic index

20%

LED lifetime

>50000H

Operation temperature

-30oC~+50oC

Optical Lens

PMMA Optical Lens

Optical Design

Special Batwing and Asymmetrical Light Patterns

Beam Color

Typical 6000K or 2700-6000k available

Color Rendering Index

>75

Housing

Aluminum

Body Weight

4.9kg

IP Rating

65



Features:
●  Light source: Bridgelux 60mil LED-best model at the moment ,the bigger size the higher lumen and better quality. Compare to most other factories use 45mil even 38mil LED .
●  High-efficiency cooling system
●  High-efficiency LED power driver :from Taiwan Meanwell with 5years warranty time
●  Optimized heat fins for natural convection
●  High luminosity and long life time
●  Environmentally friendly
●  Low power consumption
●  Excellent opto-electronic performance
●  High light transmission PC protection cover



Typical Applications:
●  Warehouse Lighting
●  Garage Lighting
●  Workshop Lighting
●  Public Lighting
●  Parking Lot Lighting
●  Walkway  Lighting
●  Other open spaces lighting








Additional Information

Payment Terms T/T
Minimum Order 1pc
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details Goods would be ready within 7 days after confirmation of deposit.
FOB Port Shenzhen
Loading Info Shipped by sea, by express
Packing Info safe packing for far way delivery
Target Market(s) Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
