Wind-Solar Hybrid Street Lights,backup for 3-5 rainy days,IP65

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Certificate	TUV,CE,ISO,UL.ROSH,etc
Energy	Wind-solar Hybrid
Voltage	12V
Application	Advertising Lighting, Architectural Lighting, Bridge, Car Park, Garden, Highway, Highway Lighting, Park, Petrol Station, Pooling Lighting, Sport Yard, Square, Square Lighting
Power Supply	Wind-solar Hybrid
IP	IP65
Light Source	LED Lamp

Detail Description

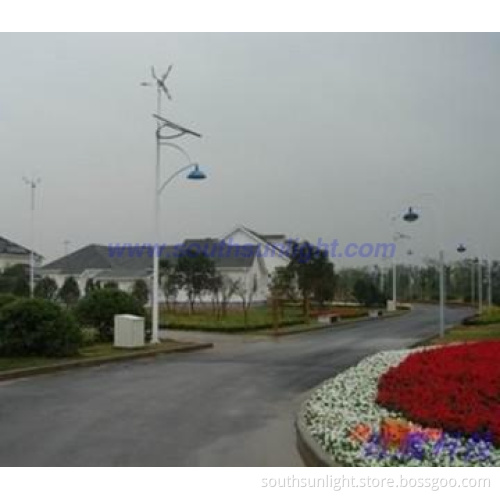

Wind&Solar Hybrid Street Lights

1、The solar battery component: 100WP/18V, monocrystalline silicon
2、The horizontal axis wind turbine: 300W/12V permanent magnet motor, fiberglass blades
3、The battery: 12V/80Ah, 2 blocks of full sealed maintenance-free lead-acid battery
4、controller of NFYG-10AH solar, overcharge and overdischarge, light control and time control
5、Source: 30W, ultra bright LED, temperature is 3500 ~ 7000K, the luminous flux of 1500LM, average illuminance is 20LX
6、The lamp body: 6 meters high, the wall thickness of 3.5mm, steel pipe, hot galvanized coating
7、Working time: full power 6-10 hours work (set), 3-5 days of continuous overcast and rainy days
8、Applicable temperature: -40 ℃ -50 ℃
9、Wind resistance: ≥ 150FM/H

1. The solar street light configurations are based on scientific calculation and engineering project experience. They are suitable for areas with annual average peak power sunshine of 4.5hrs per day. Battery capacity is designed for 3 days backup in cloudy or rainy weather.

2. Our solar street lighting system configurations can be customized based on client\'s specific project requirement and weather condition.

3. The batteries are suggested to be placed in battery box and buried in a underground cement pit. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter, wateproof and theftproof, easy for replacement in late period.

4. The pole patterns are standardized type, practical and economical, which can also be customized as per client\'s specific requirement.

5. All parts are certified by CE and ROHS certificates, meeting Europe standard.

Product Application:

1. Airports
2. Corporate Campuses
3. Healthcare
4. Municipal
5. Schools & Universities
6. Site & Area
7. Streetlighting
8. Government

Additional Information

Payment Terms	L/C, T/T
Minimum Order	5
Lead Time / Delivery Time	10 Day(s)
Sample Available	NO
Delivery Details	within 20days after got the payment.
FOB Port	Shenzhen
Loading Info	Shenzhen port, ocean shipment.
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
