Wireless door sensor with high sensitivity

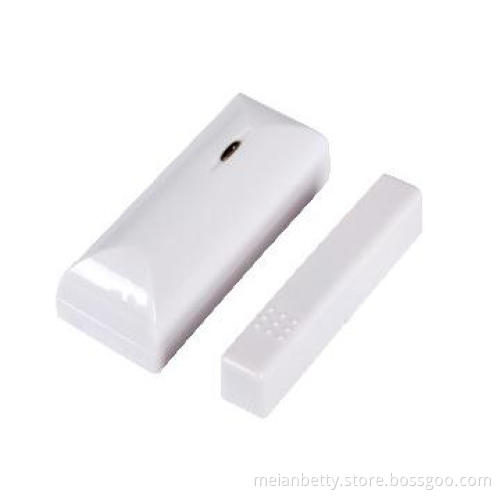

PE-8102 Wireless Curtain Detector / Magnetic Reed Switches

PE-8102 is Mini wireless intelligent magnetic contact detector, it has door or window open/close instant detect

alarm function, smart mini design easy to match the installation environment, cooperate with furniture decoration, it

has the higher sensitivity work with wireless alarm control panel within 200 meters via built-in antenna, wireless

coding or enter the 9 digit address code with alarm control panel, when magnetic stripe the distance over than 2 cm

with transmitter,  it will send out the wireless alarm signal to alarm control panel immediately.

 Features:

1. adopted special micro-power low consumption CPU

2. adopted unique multi code

3. Code: 28-digit ID, 8-digit function code, 36 digit date code in

total

4. working status report automatically

5. open door or window indication (LED flash)

6. working voltage is 3.0V (CR123A 3.0V Lithium Battery x 1 pc)

7. current consumption: ≤5uA (static) / current emitting: ≤15mA

(alarm)

8. wireless emitting frequency: 433MHz / 868MHz

9. wireless emitting distance: 200m (in open area / built in Antenna)

10. working temperature is -10°C ~ +50°C

11. dimension is 80*32*24mm (transmitter) / 74*20*12mm (magnetic stripe) / ivory white color
