Touch Keypad Wireless GSM + PSTN Alarm System Package

Touch Keypad Wireless GSM + PSTN Alarm System Package

Features:

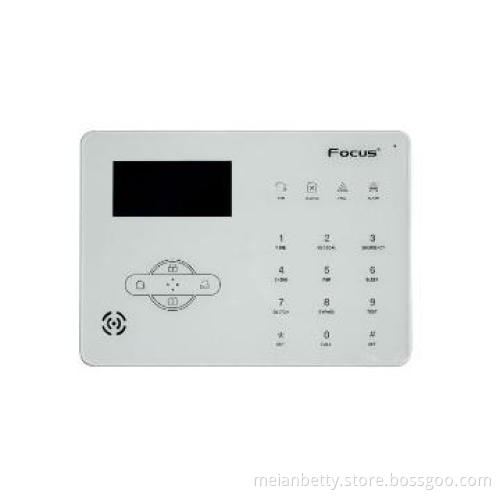

PE-4203 – wireless alarm control panel + GSM module

An obvious feature of this panel is that it can be installed without open it.

1. With voice indication all around the operation, English LCD screen;

2. Support Contact ID;

3. 2 CMS number and 4 voice alarm receiving number;

4. Support 8 wired and 32 wireless zones;

5.Tel-line and GSM priority switchable;

6. Arm/Disarm, Remote Arm/Disarm and Check status by SMS

7.Vandal-proof function.

8. AC power off and restoration  testing function

PE-7207P – wireless PIR wall mounting detector (Pet immunity) x 2 pcs

1.    adpots self-designed MASK chip with DMT technology

2.    reliable detection performance with dual passive PIR technology

3.    excellent false alarm prevention with look-down window to avoid blind corner

4.    wireless detection distance: 12m@25°C / detection angle: 110°

5.    wireless emitting distance is 120~150 meter (in open area)

6.    pet immunity under 25kgs

7.    wireless emitting frequency is 433MHz / 868MHz

8.    working voltage is 3.0V DC

9.    Anti-EMI >30V/m (30MHz~1GHz) / Anti-White Light >8000LUX

10.   installation height 1.8~2.4 meter (6~8 feet) / single-sided corner mount at 45°to wall

11.   consumption current is 9uA(static)/20mA(alarm)

12.   alarm indication is LED light flash for 2seconds

13.   operation temperature is -10°C to +50°C (14°F to 122°F)

14.   storage temperature is -20°C to +60°C (-4°F to 140°F)

15.   dimension is 136*60*48mm / ivory white color

PE-7208P – wireless PIR wall mounting detector (water-drop design / Pet immunity) x 2 pcs

1. anti-white light with spherical lens and sealed optical design
2. adpots self-designed MASK chip with DMT technology
3. reliable detection performance with dual passive PIR technology
4. wireless detection distance: 9m@25°C / detection angle: 90°
5. wireless emitting distance is 120 ~ 150 meter (in open area)
6. pet immunity under 25kgs
7. wireless emitting frequency is 433MHz / 868MHz
8. working voltage is 3.0V DC (CR123A 3.0V Lithium Battery)
9. Anti-EMI >30V/m(30MHz~1GHz) / Anti-White Light >8000LUX
10. installation height 1.8 ~ 2.5 meter (6 ~ 8 feet) / single-sided corner mount at 45°to wall
11. consumption current is 9uA(static)/20mA(alarm)
12. alarm indication is LED light flash for 2 seconds
13. operation temperature is -10°C to +50°C (14°F to 122°F)
14. storage temperature is -20°C to +60°C (-4°F to 140°F)
15. dimension is 95*64*49mm / ivory white color

 PE-8101 – wireless intelligent door sensor (included emergency button) x 2 pcs

1. adopted special micro-power low consumption CPU
2. adopted unique mutil code / with emergency  button
3. Code: 28-digit ID, 8-digit function code, 36 digit date code in total
4. working status automatically report
5. open door or window indication
6. working voltage is 4.5V (AAA LR03 1.5V Alkaline Battery x 3 pcs)
7. current consumption: ≤5uA (static) / current emitting: ≤15mA (alarm)
8. wireless emitting frequency: 433MHz / 868MHz
9. wireless emitting distance: 200m (in open area / built in Antenna)
10. working temeprature is -10°C ~ +50°C
11. dimension is 75*34*22mm (transmitter) / 75*13*20mm (magnetic stripe) / ivory white color

PE-9101 – wireless intelligent remote controller (included emergency button) x 2 pcs

1. 6 independent function buttons
2. Code – 28 bit ID, 8 bit Function code, 36 bit Date code
3. with emergency button and control wireless electronic switch function
4. high sensibility within 100 meter range
5. exquisite icon button design easy for the final user operation
6. low consumption for transmitting / indication  for signal output visible
7. scientific address code with millions of combination, which enable all the wireless remote controller to be exclusive one, without our permitting, it is impossible to copy our wireless products
8. built-in 2pcs CR2032 3.0V Lithium Battery
9. wireless emitting frequency is 433MHz / 868MHz (LED light flash)
10. working voltage is 5.8V ~ 7V
11. working temperature is -10°C ~ 50°C
12. dimension is 73*35*14mm / weight 22g / grey color
