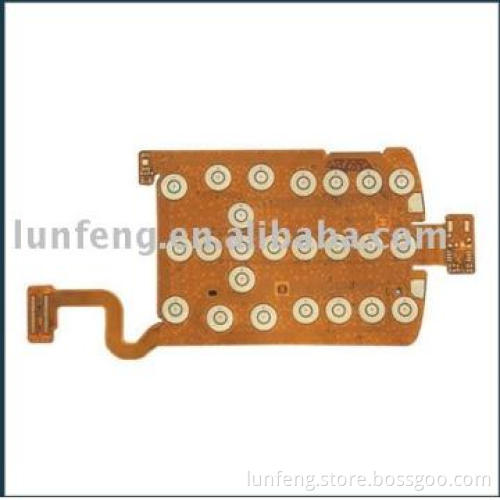

Flexible printed circuit,custom flexible printed circuit
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Detail Description
Detailed Product Description
1.100% quality tested
2.Long life expectancy
3.LED light can be installed
4.FPC - single side circuit
Printing flexible circuit SMT and EL Backlight
Key Specifications/Special Features:
Flat keys or tactile type
Embossed button with good tactile feel
Pre-assemble with or without metal domes
Water-resistant, dust-proof, gas-proof
Long life expectancy
100% quality tested
LED light can be installed
EL backlight
Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω--500Ω (According the trace length and materials to confirm)
Insulation resistance:> 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)
Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force: flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 - +80, Storage temperature: -40 - +85 Humidity: 40 , 90% -95%, 240 hours
Additional Information
| Payment Terms | T/T, L/C, Western Union |
|---|---|
| Minimum Order | 500pcs |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
