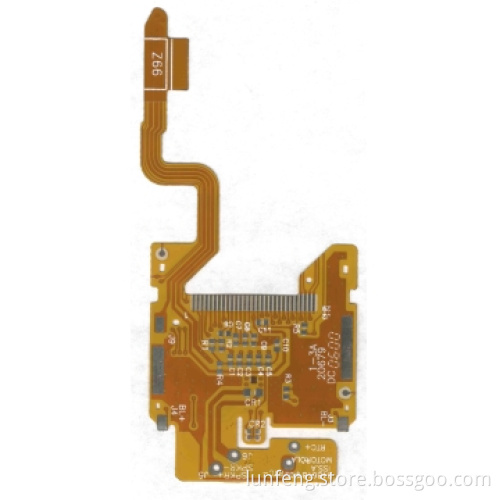

Flexible Printed Board of FPC

Material : PI

Origin: China

Copper thickness: 0.5-7.0 oz

Board thickness: 0.21-7.0mm

Minimum Conductor width: 3mil

Minimum Conductor space: 3mil

Surface finish: Chem.Ni/Au, immersion Sn,/Silver,  OSP, Flash Gold, HASL Leadfree+gold finger, conductive carbon ink.  plating tin

Layer:1~16 layers

Certificate:ISO9001 :2000,    ISO14001:2004,   UL

Reference-Our Production Capability for Rigid PCB
Layer: 1-40
Board finished thickness: 0.21mm-7.0mm
Material: FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free ,Rogers,
HF,NELCON,TACONIC,ARLON,etc  FR-1
Max. finished board size: 23*25mil(580mm*900mm)
Min.drilled hole size: 3mil(0.075mm)
Min.line width: 3mil(0.075mm)
Min.line spacing: 3mil(0.075mm)
Surface finish/treatment: HASL  /HASL lead free,HAL,Chemical Gold/tin,Immersion Silver/Gold/Tin,OSP,
Gold plating,Hard&Soft gold,Plating tin,
Solder mask color : Green/yellow/black/white/red/blue
Copper thickness in hole: >25.0um (1mil)
Shape tolerance: plus or minus 0.13
Hole tolerance: PTH:plus or minus 0.076    NPTH:plus or minus 0.05
Certificate: UL,ISO9001,ISO14001,SGS,RoHS compliance
Specail req. Buried and blind vias+controlled impedence+BGA
Profiling : Punching ,Routing ,V-CUT,Beveling
Product range: Flex-PCB,Rigid-PCB,Flex-rigid PCB,HDI PCB ,PCB of single,
Double and Multi-layers,High frequency PCB ,etc
Packing Inner  :Vacuum packing/Plastic bag
Outer :Standard carton packing

Standards of RoHS

Provides OEM services to all sorts of printed circuit board assemblies as well as electronic encased products

We can supply  Standard and Special PCB (including Rigid boards, Flexible boards, and Rigid-Flex boards) PCB Assembly in all fields (Auto, Electronics, Telecommunications etc)

with High Quality,Competitive Price and Best service
