Strong & Durable & Versatile and Economical Medium Duty Shelving
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Design by | Autocad |
|---|---|
| Finishing | Powder Coating |
| Loading Capacity | 300kg to 500kg/level |
| Color | Sky Blue or Orange |
| Size | Depends on client requirement |
| Depth | 400-1500mm |
| Type | Other Storage Shelves |
| Scale | Light Duty |
| Height | 1000-6000mm |
Detail Description

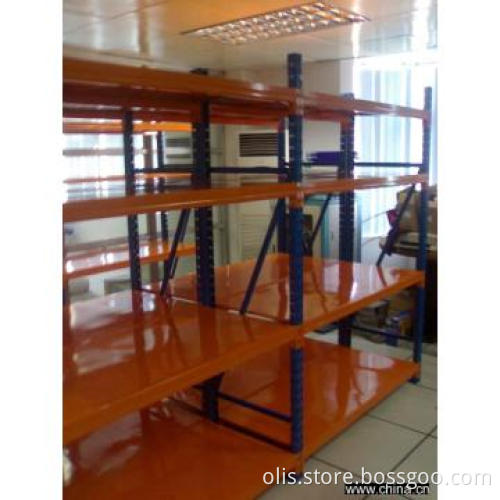

Strong & Durable & Versatile and Economical Medium Duty Shelving
1. Features:
A. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
B. Available in wide range of shelving height, depth & length and loading capacities to clients\' storage needs.
C. Fully adjustable shelf height.
D. Very easy to install and dismantle.
E. Rapid handling and direct access of almost all types of goods.
F. Maximizes space use in any storeroom configuration while retaining optimum product accessibility.
G. Strength and rigidity prevents compression damage to goods.
2. Loading capacity & Specification:
A. Loading capacity: 200-800 kgs UDL/layer, bigger capacity available to special needs.
B. Height: 1000-6000mm
C. Depth: 400-1500mm
D. Length: 1500-2700mm
E. Specail sizes also avaiable to specific storage needs.
3. Parts:
A. Upright section: 55*47*1.5, 55*47*2.0, 80*60*1.5, 80*60*2.0mm, etc.
B. Step beams section: 50*30*1.5-2.0, 60*40*1.5-2.0, 80*50*1.5-2.0, 110*50*2.0-2.5mm, etc.,
C. Steel panels thickness: 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc.
D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Material: High-quality steel from Zhujiang Steel Co. Ltd.
5. Finish: High-quality Powder Coating.
6. Quick Delivery. Big production capacity allow us in a position to make quick delivery.
1. Features:
A. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
B. Available in wide range of shelving height, depth & length and loading capacities to clients\' storage needs.
C. Fully adjustable shelf height.
D. Very easy to install and dismantle.
E. Rapid handling and direct access of almost all types of goods.
F. Maximizes space use in any storeroom configuration while retaining optimum product accessibility.
G. Strength and rigidity prevents compression damage to goods.
2. Loading capacity & Specification:
A. Loading capacity: 200-800 kgs UDL/layer, bigger capacity available to special needs.
B. Height: 1000-6000mm
C. Depth: 400-1500mm
D. Length: 1500-2700mm
E. Specail sizes also avaiable to specific storage needs.
3. Parts:
A. Upright section: 55*47*1.5, 55*47*2.0, 80*60*1.5, 80*60*2.0mm, etc.
B. Step beams section: 50*30*1.5-2.0, 60*40*1.5-2.0, 80*50*1.5-2.0, 110*50*2.0-2.5mm, etc.,
C. Steel panels thickness: 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc.
D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Material: High-quality steel from Zhujiang Steel Co. Ltd.
5. Finish: High-quality Powder Coating.
6. Quick Delivery. Big production capacity allow us in a position to make quick delivery.
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5 Tons |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| Delivery Details | The delivery date is 30 days out of factory when we get the 30% deposit. |
| FOB Port | Guangzhou,Shenzhen |
| Loading Info | From factory to ShenZhen Port : by truckFrom ShenZhen Port to client Port: By sea |
| Packing Info | Loaden by containerThe bubble film packing |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
