High Resolution Vandal-resistant IR LED Dome Camera, Built-in IR LED
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| WDR | DIGITAL WDR |
|---|---|
| ZOOM | DIGITAL ZOOM |
| DAY/NIGHT | YES |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Vandal-proof, Waterproof |
| Image Sensor | CMOS |
| Technology | Infrared, Zoom |
Detail Description

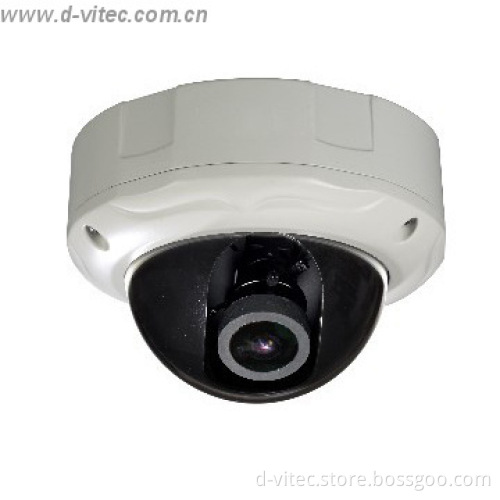

1080P VANADALPROOF VARIFOCAL DOME CAMERA
Model: DV-HD8E144V
1、Description
DV-HD8E144V series is using broadcast standard HD-SDI technology, the cameras are as easy using as analog cameras, but can get 1080P HD picture. With excellent low light performance, the screen effect is very superior.
With special IP68 waterproof design, the camera is ideal for outdoor use. DV-HD8144V cameras are suitable especially for finance, highways, safe cities, prisons and other application.
2、Related Items
1080P: DV-HD8E144V
720P: DV-HD8E143V
3、Features
IP 68 waterproof design for outdoor use
1080P HD Real-time outputs
HD-SDI outputs Support SMPTE292M、SMPTE424M standard
Low illumination, 3DNR
Low power consumer 1.2W（100mA）
WDR, D-WDR, BLC
Digital Zoom
Mega Auto Iris lens 2.8-12mm
4、Specification
| Model number | DV-HD8E144V |
| Image sensor | 1/3” Panasonic CMOS(MN34041PL) |
| Total Pixel | 2010(H)x1108(V) |
| Active Pixel | 1920(H)x1080(V) |
| Scanning system | Progressive |
| Resolution | 1100TVL |
| Min. Illumination | Color : 0.2 lux, BW: 0.05 lux, F1.2 |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| DigitalSlow Shutter | Off/Low/Middle/High |
| S/N Ratio | 50dB（AGC OFF） |
| WDR/BLC | WDR、BLC（D-WDR） |
| DNR (Digital Noise Reduction) | 3D Masks |
| Digital Zoom | x96 |
| Privacy Mask | 32Masks |
| OSD | support |
| Video Output | HD-SDI/CVBS |
| Lens | 2.8-12mm Board Lens |
| Power(Max.) supply | DC12V, Less than 2.5Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| size | Φ140x101mm |
| weight | 580g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10pcs |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | Lead time for sample: 3 days, 30-100pcs: 5 working days, 100-500pcs: 2 weeks, 500pcs above: 3 weeks |
| FOB Port | Shenzhen |
| Loading Info | price based on ex-work |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
