1080P HD SDI MINI IR Metal Dome CAMERA
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Active Pixel | 1920(H)x1080(V) |
|---|---|
| Sensor | Panasonic CMOS |
| Type | Video Camera |
| Style | Dome Camera |
| Special Features | Vandal-proof |
| Image Sensor | CMOS |
| Technology | Infrared |
Detail Description

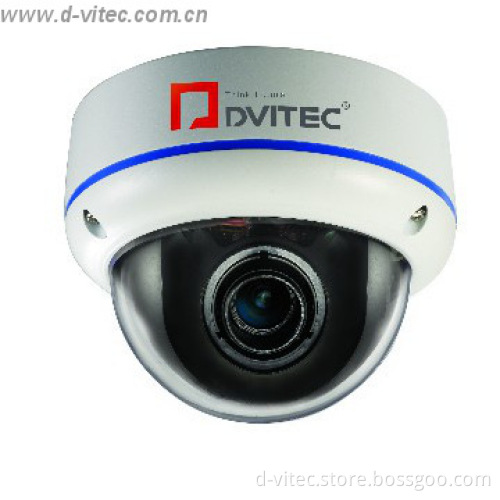

1080P MINI VANADALPROOF VARIFOCAL DOME CAMERA
Model: DV-HD8E104V
1、Description
DV-HD8E104V is using broadcast standard HD-SDI technology, the cameras are as easy using as analog cameras, but can get 1080P HD picture. With excellent low light performance, the screen effect is very superior. With built in ICR, the camera can get true day and night image. DV- HD8104V cameras are suitable for finance, highways, safe cities, prisons and other application.
2、Related Items
1080P: DV-HD8E104V
720P: DV-HD8E103V
3、Features
1080P HD Real-time outputs
HD-SDI outputs Support SMPTE292M、SMPTE424M standard
Low illumination, 3DNR
Low power comsumer1.2W（100mA）
WDR, D-WDR, BLC
Digital Zoom
Mega Auto Iris lens 2.8-12mm
4、Specification
| Model number | DV-HD8E104V |
| Image sensor | 1/3” Panasonic CMOS(MN34041PL) |
| Total Pixel | 2010(H)x1108(V) |
| Active Pixel | 1920(H)x1080(V) |
| Scanning system | Progressive |
| Resolution | 1100TVL |
| Min. Illumination | Color : 0.2lux, BW: 0.05 lux, F1.2 |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| DigitalSlow Shutter | Off/Low/Middle/High |
| S/N Ratio | 50dB（AGC OFF） |
| WDR/BLC | WDR、BLC（D-WDR） |
| DNR (Digital Noise Reduction) | 3D Masks |
| Digital Zoom | x96 |
| Privacy Mask | 32Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | 2.8-12mm Board Lens |
| Power(Max.) supply | DC12V, Less than 2.5Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | Φ105x81mm |
| weight | 450g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
