1080P HD-SDI MINI BOX CAMERA
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| DIGITAL ZOON | SECURITY |
|---|---|
| LOW ILLUMINATION | DAY&NIGHT |
| LOW POWER CONSUMER 1.2w | WDR |
| DIGITAL WDR | BLC |
| Type | Video Camera |
| Special Features | Other |
| Technology | Other |
| Image Sensor | CMOS |
| Style | Box Camera |
Detail Description

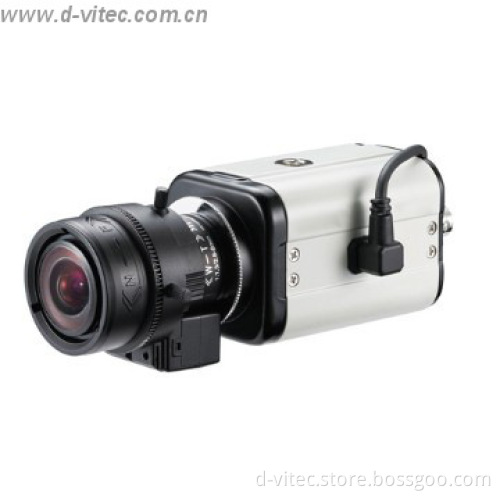

1080P HD-SDI Mini Box camera
Model: DV-HD4E464
1、Description
DV-HD4E464 use of broadcast standard HD-SDI technology, real time, the cameras are as easy use as analog cameras, but can get 1080P HD picture. With excellent low light performance, day and night, HLC, mirror and other unique features, the screen effect is very superior, DV-HD4464 HD SDI box camera is widely used in high quality requirements fields like finance, government, telecommunications, schools, shopping malls, public security and others
2、Related Items
1080P: DV-HD4E464
720P: DV-HD4E463
3、Features
Model: DV-HD4E464
1、Description
DV-HD4E464 use of broadcast standard HD-SDI technology, real time, the cameras are as easy use as analog cameras, but can get 1080P HD picture. With excellent low light performance, day and night, HLC, mirror and other unique features, the screen effect is very superior, DV-HD4464 HD SDI box camera is widely used in high quality requirements fields like finance, government, telecommunications, schools, shopping malls, public security and others
2、Related Items
1080P: DV-HD4E464
720P: DV-HD4E463
3、Features
1080P HD Real-time outputs
HD-SDI outputs Support SMPTE292M、SMPTE424M standard
Low illumination, 3DNR
Day& night, HLC, Mirror function
Low power comsumer1.2W（100mA）
WDR, D-WDR, BLC
Digital Zoom
| Model number | DV-HD4E464 |
| Image sensor | 1/3” Panasonic CMOS(MN34041PL) |
| Total Pixel | 2010(H)x1108(V) |
| Active Pixel | 1920(H)x1080(V) |
| Scanning system | Progressive |
| Resolution | 1100TVL |
| Min. Illumination | Color: 0.2 lux, B/W:0.05,F1.2 |
| Shutter Speed | AUTO/MANUAL(1/50(60) ~ 1/60,000 sec) |
| DigitalSlow Shutter | Off/Low/Middle/High |
| S/N Ratio | 50dB（AGC OFF） |
| WDR/BLC | WDR、BLC（D-WDR） |
| DNR (Digital Noise Reduction) | 3D Masks |
| Digital Zoom | x96 |
| Privacy Mask | 32Masks |
| OSD | support |
| Video Output | HD-SDI: SmptE 292,424,425 /CVBS:1.0Vpp,75ohm |
| Lens | CS/C |
| Power(Max.) supply | DC12V, Less than 1.5Watts |
| Operating Condition | -10℃~+50℃ |
| Humidity | 90%≤RH |
| Dimension | 46(H)x48(W)x 87(L)mm |
| weight | 300g |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | NO |
| Delivery Details | 7-10days after receiving deposit. |
| FOB Port | Shenzhen |
| Loading Info | BOTH OF BUCK AND DETAIL ARE ACCEPTABLE |
| Packing Info | PACKED BY CARTON.SAFE |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
