700TVL High Resolution Mini IR Water-Proof Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Day/Night selection	Support
Resolution	700TVL
Type	Video Camera
Special Features	Waterproof
Image Sensor	CCD
Style	Box Camera
Technology	Infrared, Zoom

Detail Description

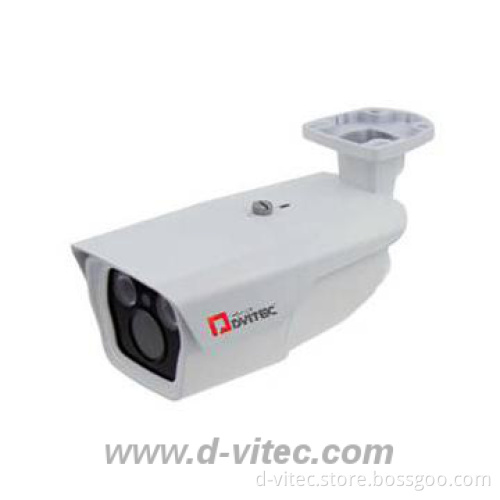

700TVL High Resolution Mini IR Water-Proof Camera

Model: DV-910EHV

1、Description
DV-910EHV have high resolution video output and many practical functions. The design of DV-910 series is simple and popular. With the latest chip solution and 2pcs IR array and 2.8-12mm zoom lens, DV-910EHV can provide high quality video within the range of 40 meters at day or night.
DV-910EHV are outdoor cameras, with rating of IP66. And they are suitable for community, campus, factory and other application.
2、Related Items
DV-910AHV
DV-910EHV
DV-910LHV
3、Features

1/3\" SONY SuperExview CCD II
Resolution: 700 TVL
Low Illumination: Color:0.01 Lux, B/W 0.001 Lux（F1.2，AGC ON，30IRE），0 Lux with IR
Defog, D-WDR, BLC, HLC
2DNR
Motion Detection, Private Mask
OSD Menu

4、Specification

model	DV-910EHV
Image Sensor	1/3’SONY SuperExview CCD II
Effective pixels	NTSC: 976（H）×494（V）/PAL:976(H) X582(V)
Scanning System	interline-scan H：15.625KHZ V：50HZ
Synchronization	Internal Synchro nization
Resolution (Horizontal)	700TVL
OSD menu	Supprot
BLC	D-WDR/HLC/BLC/OFF
Privacy Masking	On / Off (Programmable 4 zones)
Motion Detenction	On / Off (Programmable 8 zones)
DNR	2DNR
Day/Night selection	Support
Gammar	0.45
S/N Ratio	≥52dB（AGC OFF）
Min.Iiumination	Color:0.01 Lux B/W 0.001（F1.2，AGC ON，30IRE），0 Lux with IR
LED	2 pcs（dot-matrix）
Lens focal length	2.8-12mm Board Lens
Gain Control	Auto
Whtie Balance	Auto 2500ºK-10000ºK
Video Output	CVBS : 1.0Vp-p,75Ωcomposite
Input Voltage	DC12V
Power Consumption	4.8W（Max）
Weight	600g
Operating Temp	﹣10℃～＋50℃
Storage Hum	30%RH~80%RH
Dimension	270x107x148mm

Additional Information

Payment Terms	L/C, T/T
Minimum Order	10pcs
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES
Delivery Details	Lead time for sample: 3 days, 30-100pcs: 5 working days, 100-500pcs: 2 weeks, 500pcs above: 3 weeks
FOB Port	Shenzhen
Loading Info	price based on ex-work
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
