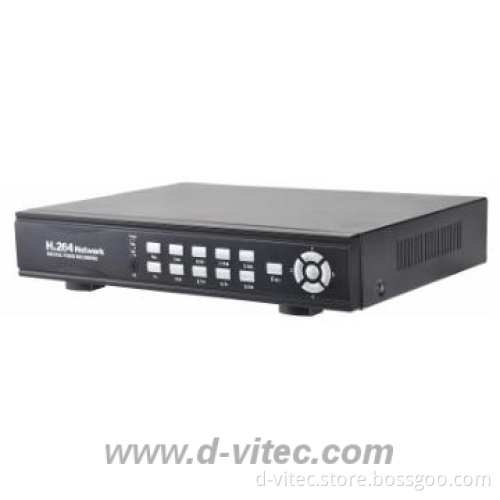

Security Surveillance Digital Video Recorder (Analog DVR)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Color | Black |
|---|
Detail Description
| System | Operating system | Embedded LINUX operating system |
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |
| Interface | Operation interface | 16bit real color GUI interface support mouse operation |
| Display screen | 1/4 | |
| Video | Video standard | PAL（625 lines，50fps）；NTSC（525 lines，60fps） |
| Image encode | H.264(High Profile) | |
| Monitor quality | Monitor：D1；VGA/HDMI：support 1920*1080, 1280*720, 1280*1024, 1024*768、800*600 | |
| Playback quality | 4*D1 | |
| Encode capability | 4ch D1 real-time | |
| Decode capability | 4ch D1 real-time | |
| video input | 4*D1 | |
| Motion detection | Each channel can set 192（16*12）detection area；can set multi-level of flexibility | |
| Audio | compression | G711A |
| Record and playback | Record mode | manual>alarm>motion detection>timing |
| Local playback | 4D1 | |
| Video search | time、date、event、channel search | |
|
Storage and back up |
Space occupation | Video：CIF 4~5G/day/channel，D1 16~20G/day/channel；audio：691.2M/day*channel |
| Video storage | Local HDD 、Network | |
| Back up mode | Network backup、USB portable HDD、USB imprint、SATA imprint | |
| Interface | Video input | 4ch CVBS/BNC(1.0Vp-p,75Ω) |
| Video output | 1ch CVBS/BNC(1.0Vp-p,75Ω)，1ch VGA，1ch HDMI | |
| Audio input | 1ch RCA(200-2800mV,30KΩ) | |
| Audio input | 1ch RCA(200-3000mV,5KΩ) | |
| Alarm input | - | |
| Alarm output | - | |
| Network port | RJ45 10M/100M self-adaptive Ethernet port | |
| PTZ control | 1 RS485、1 RS232；support multi kinds of PTZ protocol | |
| USB port | 2*USB2.0 | |
| HDD port | 1SATA ports（ more than 3000G） | |
| Other | Power | 12V/2A |
| Consumption | <15W（not including HDD) | |
| Temperature | 0℃-＋55℃ | |
| Humidity | 10%－90% | |
| Atmosphere pressure | 86kpa－106kpa | |
| Dimension(W×D×H | 280*205*50mm | |
| weigh | 1kg |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 14 Day(s) |
| Sample Available | YES |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
