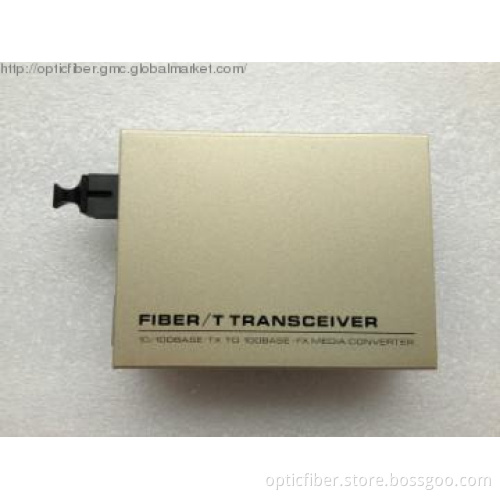

10/100M Singlemode Single fiber Media Converter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Media Converters provide an intelligent solution for fiber optic connectivity where simplicity, low cost, and minimum footprint are the primary considerations.
Complies with IEEE 802.3 10Base-T standard
Complies with IEEE 802.3u 10/100 Base-TX/FX standard
Max.2M buffer memory built in chip
Back presure flow control for full/half duplex IEE802.3X
Auto matic identification of MDI/MDI-X cross-line
High-performance 1.4Gbps memory bandwidth
Complies with FC, 15 CLASS A and CE MARK

Transmission Speed	10Mbps/100Mbps, 1000Mbps, 10Mbps/100Mbps/1000Mbps
Wavelength	850nm/1310nm/1550nm
Transmission Distance	Dual Fiber/Multimode: 2km
Dual Fiber/Single-Mode: 20/40/60/80/100/120km
Single Fiber SM: 25/40/60/80/100km
Connection Distance	Twisted Pair CAT-5<100m
Electrical Port(copper)	1, 2, or 4 RJ45 ports: connecting with STP/UTP Cat5
Optical Port(fiber)	Dual Fiber/Multimode: SC or ST (fiber dimension: 50, 62.5/125μm)
Dual Fiber/Single-mode: SC or FC (fiber dimension: 9/125μm)
Single Fiber/Single-mode: SC or FC(fiber dimension: 9/125μm)
Conversion Method	Media conversion, store-and-forward/straight -through
Buffer Size	1Mbit
Flow Control	Duplex: flow control; Half duplex: back pressure mode
Time Delay	Store-and-forward: 9.6us, Straight-through: 0.9us
Life Time	>100,000 hours
BER	<1/1000000000
Power Supply	AC110/220V( with built-in power )
DC-48V, DC24V, DC12V, DC5V
Power Dissipation	<2.5W, 8W
Working Temperature	0 ~ 55C
Working Humidity	5%~90% ( non-condescending)
Storage Temperature	-40 ~ 85C
Storage Humidity	5%~95%

Payment Terms	T/T, Western Union
Minimum Order	10 PAIRS
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Full payment before delivery
FOB Port	Shekou,Yantian
Loading Info	FOB Shenzhen
Packing Info	All export packing
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
