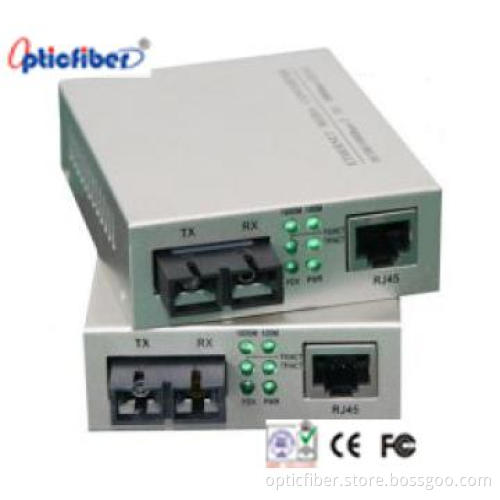

10/100m Ethernet Managed Insert Fiber Optic Converter

1. Specifications
1)100M Fiber Media Converter
2)Internal power
3) Supports SNMP management
4) FCC Class A, CE
10/100M Ethernet Managed insert Fiber Optic Converter
Function of Product
10/100M Ethernet Media Converter is the network communication device that extending the Ethernet transmission distances up to 120KM over the fiber cable, it can convert 10Base-T, 100Base-T Ethernet electric signal to 100Base-FX optical signal, 10/100M Ethernet Media Converter completely conforms to 10Base-T, 100Base-TX, 100Base-FX and IEEE802.3x standards, and compatible with Network Card, Repeater, HUB and SWITCH, provides low-cost, high-reliability solutions for broadband special network and fiber metropolitan area network.
2. Special Feature for Product
1)Supports SNMP management
2)Enable/Disable optical link-loss alarm function
3)Four transmission modes are selectable
4)Comply with IEEE 802.3µ 100Base-FX/TX, IEEE 802.3 10 Base-T standard
5)Comply with IEEE 802.1 Q VLAN protocol
6)Support 10/100M, Full/Half duplex auto-negotiation
7)Support MDI/MDIX autosense
8)Support transmission distance of up to 102KM (Dual-fiber)
9)Support over-size packets of up to 1600 Byte
10)Support hot-adaptable
11)The card works as standard and rack-based Media Converters Single-fiber and dual-fiber devices are available
3. Fiber Optical Port
1)Adopt standard 1*9pin optical transceiver module
2)Wavelength: 850nm, 1310nm on multi-mode, 1310nm, 1550nm on single-mode
3)Up to 0-20Km transmission distance on single-mode
4)SC/PC, ST/PC and FC/PC are optical
4. Parameter
1)Input Voltage: AC 220 V / AV 110V/ 24V OR -48 V
2)Power wastage: 5W
3)Wastage: 0.85 kg
4)Working temperature: -10° C~70° C
5)Storage temperature: -20° C~80° C
6)Humidity: 5% ~ 95% (no-condensing)
5. Interface
10/100Base-T: 1X RJ45 connector
100Base-T FX: 1X SC simplex connector
6. Protocol
1)IEEE802 Ethernet (10 Mbps)
2)IEEE802.1d Building tree protocol
3)IEEE802.3µ Quick ethernet ( 100Mbps)
4)IEEE802.1 Q VLAN
5)IEEE802.1 P QOS PRI
6)IEEE802.3x Full duplex flux control
7)CLSCO ISL & VTP protocol
