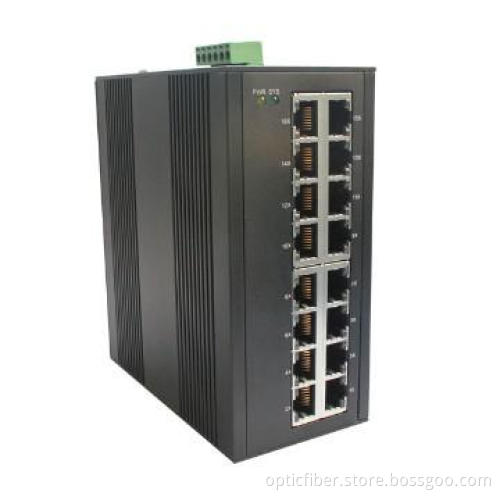

10/100m Industrial Management Ethernet Switch with 16 RJ45 (UTP) Ports
  • 10/100m Industrial Management Ethernet Switch with 16 RJ45 (UTP) Ports
10/100m Industrial Management Ethernet Switch with 16 RJ45 (UTP) Ports

10/100m Industrial Management Ethernet Switch with 16 RJ45 (UTP) Ports

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

color black
Wavelength 850nm--1610NM
Connector SC
Distance 20,40,60,80
Work Temperature -40℃ to 75℃

Detail Description

OP-GY816 managed Layer 2+ industrial Optical Ethernet switch with 100Mbps fiber optic ports and16 * 10/100Mbps electrical ports. it is designed to meet the various industrial application needs, and provide an industrial Ethernet network communication solution with a high performance-price ratio. OP-GY816’ s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. OP-GY816 also features powerful Web-based, CLI management capabilities, wide input range dual power supply and its support for DIN rail and panel mounting for installation in the industrial environment.

OP-Ring is a proprietary technology of Shenzhen First Mile Communications Ltd., designed specifically for industrial applications, to provide a fast Ethernet ring protection and recovery within 20ms.From the management console, uses can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.

Features
  • OP Ring Protection (OPRP), Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery
  • 8K address table for auto-learned unicast addresses
  • 4K VLAN, supports 802.1Q, port based, protocol based VLAN, as well as Generic Attribute Registration Protocol (GARP) and GARP VLAN Registration Protocol (GVRP) for flexible network planning and management
  • 13 trunk groups of up to 8 member ports for flexible load distribution control and fail-over function
  • Manual, static and dynamic portStatic and dynamic port aggregation for bandwidth management
  • Port rate limit, broadcast storm control, port mirroring, rich Quality of Service (QoS) features for data traffic control and management
  • Blackhole MAC address filtering, static and dynamic MAC address management for network security
  • Access Control Lists(ACL)
  • Secure Shell (SSH) v2.0
  • 802.1x
  • IGMP snooping
  • SNTP, SMTP
  • SNMP V1, V2c, V3
  • Supports RMON statistics, history, alarm and event
  • Web-based network management interface
  • Supports port and VLAN management
  • On-line firmware upgrade
  • Two privilege level accounts
  • Syslog
  • Dual power input for high reliability
  • DIN rail or panel mounting for easy installation
Performance
IEEE Protocol
  • 802.3 10Base-T Ethernet
  • 802.3u 100Base-TX and 100Base-FX fast Ethernet
  • 802.3x Flow Control and Back Pressure
  • 802.1p Class of Service
  • 802.1Q VLAN Tag
  • 802.3ad LACP
  • 802.1d STP
  • 802.1w RSTP
  • 802.1x
Non-blocking store-and-forward shared-memory switch architecture
MAC address:8K
Network management: Web-based, CLI
Fast Ethernet Ring Protection: recovery time within 20ms
Firmware upgrade: Web, online

Port Configuration
RJ45 Port:
  • Auto-negotiation, 10/100Base-T, Full/Half Duplex, Auto-MDI/MDIX, on copper cable of cat5# with operation distance of less than 100 meters.
100Base-FX Optical Port:
  • Single single-mode fiber, dual wavelength 1550nm/1310nm, SC/PC connector, 20/40/60/80/100/120 km reach
  • Dual single-mode fiber, single wavelength 1310nm or 1550nm, dual SC connector, 20/40/ 60/80/100/120 km reach
  • Dual multimode fiber, single wavelength 1310nm, dual SC connector, 2 km reach
Environmental limits
Operating Temperature:
  • 0 ~+ 60(Normal Temperature)
  • -40 ~+ 80( Wide Temperature)
Storage Temperature:-40 + 85
Humidity: 10%95%

Power Requirements:
Input Voltage:24 VDC (18 to 36VDC), redundant dual inputs
Input Current:
  • IDS 508 : <0.24A@24VDC
  • IDS 508-4F: <0.40A@24VDC
  • Overload Current Protection: Present
  • Reverse Polarity Protection: Present
  • Connector: 6-contact terminal blocks
Mechanical Dimension
House Size: 145x100x56(mm)
House Protection: IP40
Installation:DIN-Rail or wall mounting

Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
  • EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
  • EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
  • EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock:  IEC 60068-2-27
Freefall:  IEC 60068-2-32
Vibration:  IEC 60068-2-6

Warranty Period: 5years




Additional Information

Payment Terms L/C, T/T, Western Union
Minimum Order 1
Lead Time / Delivery Time 3 Day(s)
Sample Available NO
Delivery Details discuss
Loading Info FOB Shenzhen
Packing Info All Export Packing
Target Market(s) Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
