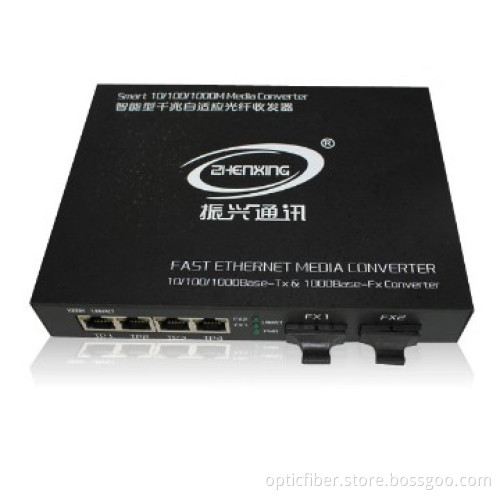

1000M Ethernet Switch 2-port Fx+4-port RJ45

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

color	black/silvery
Wavelength	850nm--1610NM
Connector	SC
Distance	20/40/60/80KM
Work Temperature	0 to 50℃

Detail Description

(1)Main features

1. In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base- TX, IEEE802.3z, IEEE802.3abstandard.
2. Built in high efficiency SRAM for packet buffer, with 1K-entry lookup table and 4- way associative hash algorithm.
3. Half duplex: back pressure flow control
Full duplex: IEEE802.3x flow control
4. Automatic identification of MDI/MDI-X cross line.
5. In conformity to safety code of FCC and 15 CLASS A and CE MARK.

(2)Technical parameters:

1. Standard Protocol: IEEE802.3 10 Base-T standard
  IEEE 802.3u 100Base-TX and IEEE802.3z standard
2. Connector: one UTPRJ-45 connector, one SC/ST connector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
  Adapter(External): 110-265V AC input, 5V1A DC output
  Power(Internal): 110-265V AC input, 5V1A DC output
5. Environmental temperature: -20℃ - 70 ℃
6. Relative humidity: 5%-90%
8. TP cable: Cat5 UTP cable
9. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
10 Dimensions:
Power external: 165mm(L)x 112mm(W) x 30mm(H)

(3)Cautions:

1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).

Additional Information

Minimum Order	10PCS
Lead Time / Delivery Time	3 Day(s)
Sample Available	NO
Delivery Details	Discuss
FOB Port	Shekou,Shenzhen,Yantian
Loading Info	FOB Shenzhen
Packing Info	All Export Packing
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
