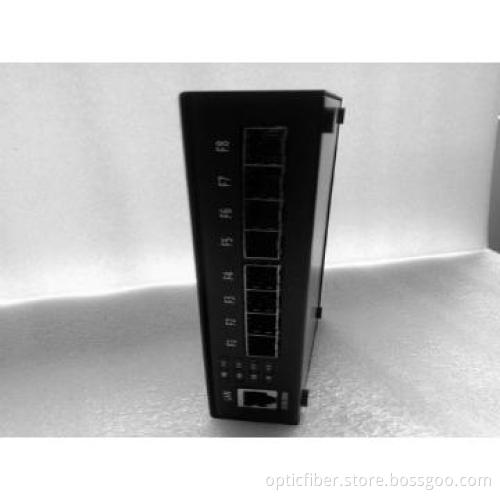

10/100/1000Base 8 SFP Slots with 1 RJ45 Media Converter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Color	black
Working Format	Point To Point
Wavelengh	1310nm
Connector	SC

Detail Description

Technical parameters:
1. Standard Protocol: IEEE802.3/u/z/ab, 10 Base-T 100Base-TX,100Base-T and 1000Base-X standard
2. MAK ID: 8k (update automatically)
3. Frame memory: 1MKb share
4. Bandwidth: 20G, no block transmit
5. Connector: 10/100/1000Base adaptive RJ45 port, 1000Base SFP port
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
9: 5. Environmental temperature: -20℃ - 70 ℃
10 Dimensions:
Power external: 190mm(L) x 125mm(W)x 35mm(H)
FCautions:
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).
FTrouble shooting:
1. Device is not matched. Please select the corresponding network device according to the transfer rate of the product (10Mbps or 100Mbps, 1000Mbps) when connected to other network devices (network card, hub, switch).
2. Line loss is excessive during the fiber wiring. Excessive loss in connector plug-in and fiber soldering welding, and excessive intermediate nodes may cause excessive loss rate or abnormal operation.
FVLAN Function:

Support VLAN ,QoS, IPv4, IPv6
Support long data up to 10K byte
Low consumption, low temperature and good stability
Note: When the switch set at left side is VLAN Status,and

         Set at right side is DIS.VLAN Status.
         All RJ45 Ports are separated when the device set at VLAN
         Status .And the equipment no need use in pair.

Additional Information

Payment Terms	T/T, Western Union, Others
Minimum Order	5 pairs
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Delivery as your request.
FOB Port	Shenzhen
Loading Info	FOB Shenzhen
Packing Info	All export packing
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
