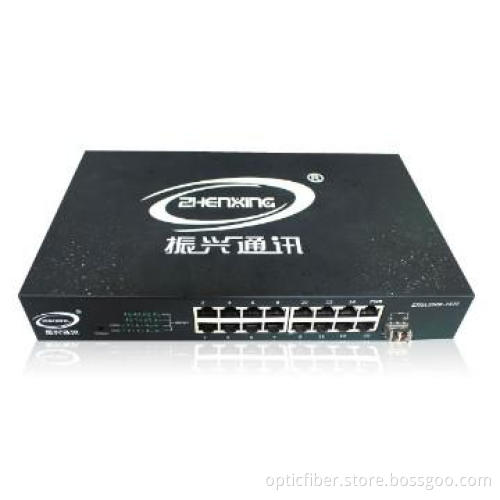

SFP Media Converter with 16 RJ45 ports
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| color | black |
|---|---|
| Wavelength | 850nm--1610NM |
| Connector | LC |
| Distance | 20/40/60/80Km |
| Work Temperature | 0 to 50℃ |
Detail Description
Name: SFP Media Converter (Type: ZX-MC-GSS)
10/100M\\10/100/1000M IEEE802.3ah OAM manageable ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. with this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
Key Features:
1. Built-in IP-based Web Interface.
2. Supporting remote and local management.
3. Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode.
4. Store and Forward mechanism.
5. Manual IP address setting/DHCP client for IP address assignment.
6. SNMP v1 / v2c monitor / private Enterprise MIB.
Event trap and SNMP trap support.
7. Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port.
8. Supports Port Status / Ethernet Statistics on both TP and Fiber intertace.
9. Supports Maximum frame size to 16K bytes.
10. Loop detection / Broadcast / Multicast / Unicast storm control.
11. Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN.
12. 802.1p Tag Priority / IP address priority / IP DSCP option in.
13. Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies.
14. TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test.
15. 16 TCP / UDP Filter groups.
16. Password setting, IP setting and devices description setting through 17. Planet Smart discovery utility.
18. Firmware upgrade via remote Web interface.
19. LED indicators for easy network diagnosing.
20. Reset Button at the front panel for the factory default reset.
21. Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
Technical Parameters:
Ethernet Interface:
1. Meet standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x
2. Data rate: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
3. Connector: RJ-45
4. UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m.
Fiber port:
1. Connector: ST, SC, FC. LC
2. Operating wavelength: 850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode.
3. Optical fibers: Multi-mode: 50/125, 62.5/125, 100/140um;
Single-mode: 8.3/125, 8.7/125, 9/125, 10/125um
4. Transmission distance: Dual fiber: Up to 100km
Single fiber: Up to 80km
Basic working environment
Operating Temp: 0~50Degree
Storage Temp: -10~70Degree
Humidity: 5%~90%(non-condensing)
Dimension(standalone): 156mm(W)*128mm(D)*32mm(H)
Power supply: 85VAC~265VAC or -40VDC~-57VDC
Power consumption: ≤ 5W
10/100M\\10/100/1000M IEEE802.3ah OAM manageable ethernet fiber media converter can supervise the real time situation of remote manageable fiber media converter and set the functions. with this system, the response speed of the operator is quickened, the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
Key Features:
1. Built-in IP-based Web Interface.
2. Supporting remote and local management.
3. Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode.
4. Store and Forward mechanism.
5. Manual IP address setting/DHCP client for IP address assignment.
6. SNMP v1 / v2c monitor / private Enterprise MIB.
Event trap and SNMP trap support.
7. Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port.
8. Supports Port Status / Ethernet Statistics on both TP and Fiber intertace.
9. Supports Maximum frame size to 16K bytes.
10. Loop detection / Broadcast / Multicast / Unicast storm control.
11. Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN.
12. 802.1p Tag Priority / IP address priority / IP DSCP option in.
13. Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies.
14. TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test.
15. 16 TCP / UDP Filter groups.
16. Password setting, IP setting and devices description setting through 17. Planet Smart discovery utility.
18. Firmware upgrade via remote Web interface.
19. LED indicators for easy network diagnosing.
20. Reset Button at the front panel for the factory default reset.
21. Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
Technical Parameters:
Ethernet Interface:
1. Meet standards: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x
2. Data rate: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
3. Connector: RJ-45
4. UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m.
Fiber port:
1. Connector: ST, SC, FC. LC
2. Operating wavelength: 850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode.
3. Optical fibers: Multi-mode: 50/125, 62.5/125, 100/140um;
Single-mode: 8.3/125, 8.7/125, 9/125, 10/125um
4. Transmission distance: Dual fiber: Up to 100km
Single fiber: Up to 80km
Basic working environment
Operating Temp: 0~50Degree
Storage Temp: -10~70Degree
Humidity: 5%~90%(non-condensing)
Dimension(standalone): 156mm(W)*128mm(D)*32mm(H)
Power supply: 85VAC~265VAC or -40VDC~-57VDC
Power consumption: ≤ 5W
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | NO |
| Delivery Details | discuss |
| FOB Port | Shekou,Shenzhen,Yantian |
| Loading Info | FOB Shenzhen |
| Packing Info | All export packing |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
