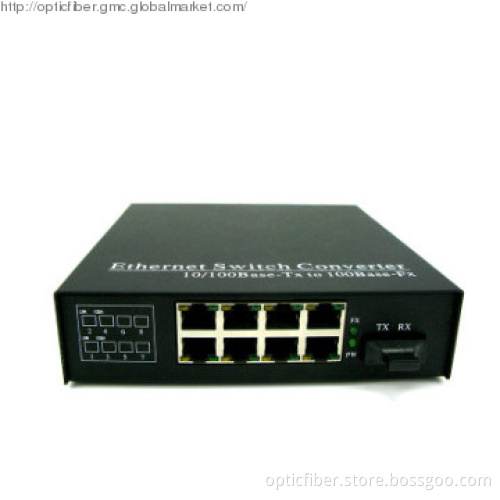

8*10/100 base RJ45+1*10/100 fiber ethernet switch
  • 8*10/100 base RJ45+1*10/100 fiber ethernet switch
8*10/100 base RJ45+1*10/100 fiber ethernet switch

8*10/100 base RJ45+1*10/100 fiber ethernet switch

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Black white
Wavelength 850nm--1610NM
Connector SC
Distance 20km
Work Temperature -20-75

Detail Description

FMain features
1. In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX, IEEE802.3z, IEEE802.3abstandard.
2. Built in high efficiency SRAM for packet buffer, with 1K-entry lookup table and 4-way associative hash algorithm.
3. Half duplex: back pressure flow control
Full duplex: IEEE802.3x flow control
4. Automatic identification of MDI/MDI-X cross line.
5. In conformity to safety code of FCC and 15 CLASS A and CE MARK.
FTechnical parameters:
1. Standard Protocol: IEEE802.3 10 Base-T standard
  IEEE 802.3u 100Base-TX and IEEE802.3z standard
2. Connector: one UTPRJ-45 connector, one SC/ST connector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
  Adapter(External): 110-265V AC input, 5V1A DC output
  Power(Internal): 110-265V AC input, 5V1A DC output
5. Environmental temperature: -20℃-70℃
6. Relative humidity: 5%-90%
8. TP cable: Cat5 UTP cable
9. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode: 8.3/125, 8.7/125, 9/125 or 10/125μm
10 Dimensions:
Power internal: 155mm(L) x 180mm(W)x 45mm(H)
FCautions:
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).
FTrouble shooting:
1. Device is not matched. Please select the corresponding network device according to the transfer rate of the product (10Mbps or 100Mbps) when connected to other network devices (network card, hub, switch).
2. Line loss is excessive during the fiber wiring. Excessive loss in connector plug-in and fiber soldering welding, and excessive intermediate nodes may cause excessive loss rate or abnormal operation.
FVLAN Function:

  1. Support VLAN ,QoS, IPv4, IPv6
  2. Support long data up to 10K byte
  3. Low consumption, low temperature and good stability
  4. Note: When the switch set at left side is VLAN Status,and
         Set at right side is DIS.VLAN Status.
         All RJ45 Ports are separated when the device set at VLAN
         Status .And the equipment no need use in pair.


Additional Information

Payment Terms L/C, T/T, Western Union
Minimum Order 10PCS
Lead Time / Delivery Time 3 Day(s)
Sample Available YES
Delivery Details Full payment before delivery.
Loading Info FOB Shenzhen
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
