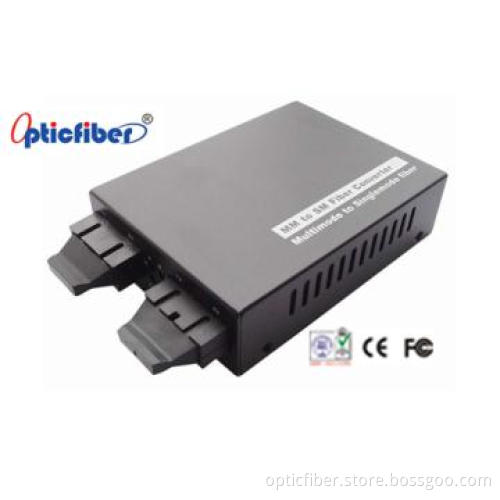

Single/Multi Mode Converter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Supporting IEEE802.3u 100Base-FX standards.
Supporting full-duplex and half-duplex and its auto-sensed.
Supporting conversion between 850nm/1310nm multi-mode fibers and 1310nm/1550nm single mode fibers.
Supporting direct and transparent transmission of packets at different lengths.
Supporting the transmission of extra-long VLAN packets.
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets.
Supporting STP to form a redundant network.
Low power consumption, low heat, reliable and stable performance, and long lifetime.
Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber.

Technical Indexes

Parameter	Specifications
Access mode	155 Mbps
Standard	Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	Multi-mode Dual-fiber: 2 km ; Single mode dual-fiber: 20/40/60/80/100/ 120 km ; Single mode single fiber: 20/40/60/80/ 100 km
Conversion means	Media conversion
BER	<10 -9
MTBF	100,000 hours
Power supply	DC5V 1A
Power consumption	3.5W
Operating temperature	-10~55ìC
Operating humidity	5%~90%
Maintaining temperature	-40~70ìC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	24mm (H)* 59mm (W)* 98mm (D)

Payment Terms	L/C, T/T, Credit Card, Western Union, Money Order, Others
Minimum Order	10
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Full payment before delivery.
FOB Port	Shenzhen
Loading Info	Shenzhen
Packing Info	Standard exporting packinglist.
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
