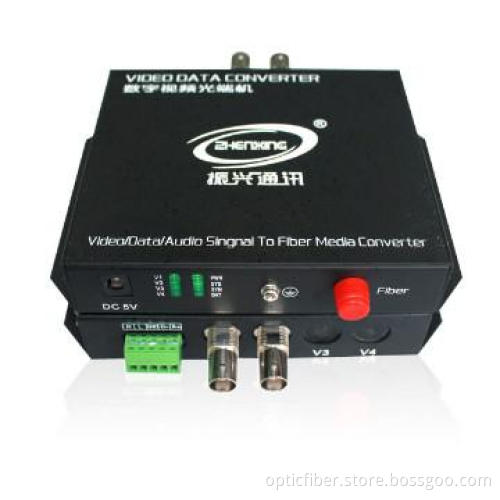

2 Channel Video Optical Transmitter and Receiver 20km
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
color | black/silvery |
---|---|
Working Format | Point To Point |
Wavelengh | 1310nm |
Connector | SC |
Detail Description
1. RS485/RS422/RS232 single/mode fiber converter, 0-500Kbps adaptive, the transmission distance is 5km (multi-mode), 20km (single mode).
2. RS485/RS422/RS232 General multimode fiber converters, 9-40 VDC external power supply, 0-500 Kbps rate adaptive, wavelength: 1310 nm, Application of optical fiber: Single-mode 9 / 125, 10/125, 8.3/125 um, transmission distance: 0-20 km, ST fiber optic connectors, -40 ~ +85 Industrial-grade temperature, the standard rails installed.
3. RS485/RS422/RS232 General multimode fiber converters, 9-40 VDC external power supply, 0-500 Kbps rate adaptive, wavelength: 1310 nm, Application of optical fiber: Single-mode 9 / 125, 10/125, 8.3/125 um, transmission distance: 0-20 km, ST fiber optic connectors, -40 ~ +85 Industrial-grade temperature, the standard rails installed.
Product characteristics and major technical indicators:
1. Voltage: 9 ~ 40 VDC wide-voltage power supply or 5 VDC power supply optional, isolate signal interface with external power within the product through DC / DC isolation module. Power consumption: <1 W
2. Interface: RS232: DTE standard interface of dB9M pin-socket, use TXD, RXD, GND lanes, with ± 15kV ESD protection and urge protection
3. RS485: D +, D- connector, with 500 W TVS Lightning Protection and ± 15kV ESD protection
4. RS422: TXD +, TXD-, RXD +, RXD- connector, with ± 15kV ESD protection and surge protection
5. Communication rate: RS232: 0 ~ 230 Kbps Adaptive; RS485/422: 0~500Kbps Adaptive
6. Applicable fiber: Single-mode 9/125, 10/125, 8.3/125um(FIB-485A-S)
7. Wavelength: 1310 nm
8. Power of launched light: -6 dBm
9. Receiving sensitivity: -22 dBm
10. Transmission distance: 0 ~ 20km(FIB-485A-S)
11. Fiber interface: Standard ST connector, SC and FC connector optional
12. Temperature: -40 ~ +85
13. Relative Humidity: 0 to 95 percent (not condensed)
14. Dimensions: 85 × 55 × 25 (L × W × H), the standard rails installation with bolts hole
15. Weight: 100 g
2. RS485/RS422/RS232 General multimode fiber converters, 9-40 VDC external power supply, 0-500 Kbps rate adaptive, wavelength: 1310 nm, Application of optical fiber: Single-mode 9 / 125, 10/125, 8.3/125 um, transmission distance: 0-20 km, ST fiber optic connectors, -40 ~ +85 Industrial-grade temperature, the standard rails installed.
3. RS485/RS422/RS232 General multimode fiber converters, 9-40 VDC external power supply, 0-500 Kbps rate adaptive, wavelength: 1310 nm, Application of optical fiber: Single-mode 9 / 125, 10/125, 8.3/125 um, transmission distance: 0-20 km, ST fiber optic connectors, -40 ~ +85 Industrial-grade temperature, the standard rails installed.
Product characteristics and major technical indicators:
1. Voltage: 9 ~ 40 VDC wide-voltage power supply or 5 VDC power supply optional, isolate signal interface with external power within the product through DC / DC isolation module. Power consumption: <1 W
2. Interface: RS232: DTE standard interface of dB9M pin-socket, use TXD, RXD, GND lanes, with ± 15kV ESD protection and urge protection
3. RS485: D +, D- connector, with 500 W TVS Lightning Protection and ± 15kV ESD protection
4. RS422: TXD +, TXD-, RXD +, RXD- connector, with ± 15kV ESD protection and surge protection
5. Communication rate: RS232: 0 ~ 230 Kbps Adaptive; RS485/422: 0~500Kbps Adaptive
6. Applicable fiber: Single-mode 9/125, 10/125, 8.3/125um(FIB-485A-S)
7. Wavelength: 1310 nm
8. Power of launched light: -6 dBm
9. Receiving sensitivity: -22 dBm
10. Transmission distance: 0 ~ 20km(FIB-485A-S)
11. Fiber interface: Standard ST connector, SC and FC connector optional
12. Temperature: -40 ~ +85
13. Relative Humidity: 0 to 95 percent (not condensed)
14. Dimensions: 85 × 55 × 25 (L × W × H), the standard rails installation with bolts hole
15. Weight: 100 g
Additional Information
Payment Terms | L/C, T/T, Western Union |
---|---|
Minimum Order | 10pairs |
Lead Time / Delivery Time | 3 Day(s) |
Sample Available | NO |
Delivery Details | Discuss |
Loading Info | FOB Shenzhen |
Packing Info | All Export Packing |
Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
