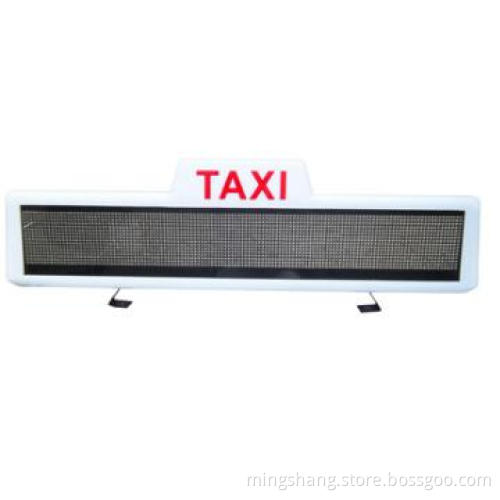

Taxi LED display,build-in Speaker and can be remote control
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| LED display | waterproof |
|---|---|
| Brand | MINGSHANG |
Detail Description
| Items | Technology parameters | Notes |
| Outlook size | 830 * 180 * 200mm | Weight：4.7KG |
| Sight size | 768 * 96mm | Weight：0.6KG |
| Dot matrix | 128 * 16dots | |
| Dot diameter | 3.75mm | |
| Pigment constitute | Yellow | |
| Single lamp chip size | 9mil | |
| Single lamp brightness | 1500-1700mcd | Single lamp max current <26 mA |
| Angle of view | Left&right 60-80°，up&down 30-40° | |
| Dot spacing | 6mm | |
| Brightness types | Semi outdoor | |
| Scanning way | 1/8 scanning | |
| Information move ways | 40 kinds of showing way: static display, left/right rolling, left/right moves in,etc. | |
| Information storage | 510 strip | |
| single information max length | 240 Chinese characters | |
| Brightness adjusting | 16 level automatic/time regulation | |
| Reversing blank screen function | Yes | |
| Steering with prompt functions | Yes | |
| Communication interface | RS-232 | Support 485 |
| Communication interface rate | 9600bps | according to needs modify rate |
| Communication interface pattern | 8-N-1 | |
| Work power supply | DC 9V-36V | >36V automatic screen protection |
| Power consumption | shut show：0.5W properly display：6-15W | |
| Operating environment | Temperature:-40 - +85℃ Humidity：10%-90% | |
| Saverage temperature | －40℃ - 100℃ | |
| Anti-electromagnetism interference | Yes | By edm interference (10-200HZ，20minutes)test |
| Antistatic ability Ⅰ: | Yes | direct discharge±6000V |
| Antistatic ability Ⅱ | Yes | indirectly discharge±8000V |
| Installation structure | Slide structure |
Additional Information
| Payment Terms | L/C, T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 100PCS |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposit, delivery after clearance of the balance. |
| FOB Port | Shenzhen |
| Loading Info | Sea transportation, air transportation and international express |
| Packing Info | For back view series, 8 pieces into a carton, size: 505x405x390 |
| Target Market(s) | Eastern Europe, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
