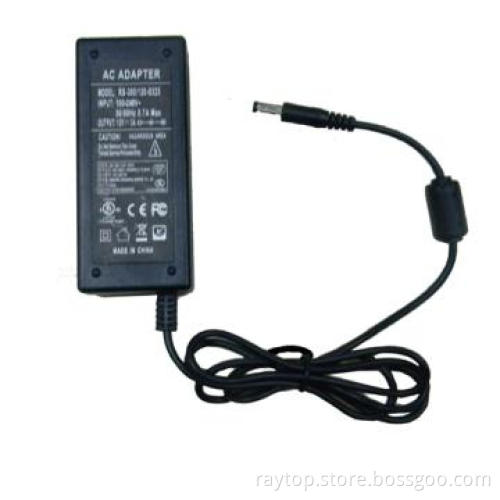

Constant voltage,Single Output 12V,5A CCTV Power supply
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Color | Black |
|---|
Detail Description
Application:
Digital and electronic products
LCD,LED,CD-ROM,DVD-RW
Notebook PC, Portable Device.
CCTV camera, fiber transceivers
Protection:
With short circuit, over temperature and over power protection.
The power supply will auto recovered when faults remove.
The power supply shall not damage by short the output the output to ground.
Specifications:
Input voltage:AC110~240V 47~63HZ
Output voltage:DC12V
Output current:5A
Overcurrent protection:5.5A±5%
Ripple&Noise:≤80mV
Efficiency:85%min
MTBF:>50000Hrs
DC output voltage range:5~48V
DC output current range:0~5.5A
DC output connector:5.5x2.1mm
Operaturing temperature:-25°c~+60°c 20%~90% RH
Storage temperature:-40°c~+70°c 10%~95% RH
| Input Voltage: | AC110-240V/47-63HZ |
| Output Voltage: | DC12V |
| Output Current: | 5A |
| Output Power: | 60W |
| Over current protection: | 5.5±5% |
| DC output voltage range: | 5-48V |
| DC output current range: | 0-5.5A |
| Ripple& Noises: | ≤80mV |
| Efficiency: | 85% Min. |
| MTBF: | >50000Hrs |
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 500 sets |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 working days from down payment |
| Packing Info | plane box/ color box/blister |
| Target Market(s) | Eastern Europe, Latin America, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
