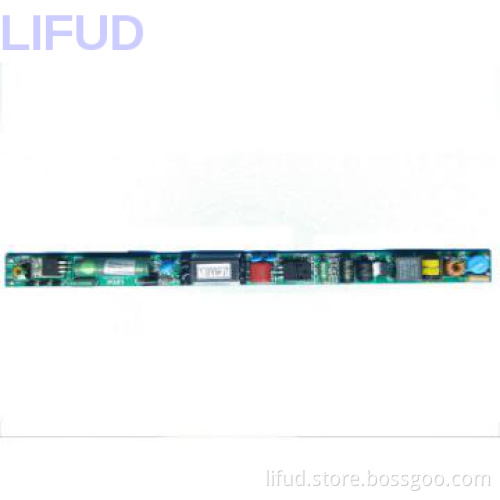

flicker-free T8 tube driver, 20W, isolated, low ripple current
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Power | output power 12-20W |
|---|---|
| Life | 30000 hours, 3 years warranty |
| Dimmable | Yes |
| IP | IP11 |
| Voltage | 90-260V |
Detail Description
- Input voltage : 100-277Vac, 50HZ / 60HZ
- Output voltage: 36-40Vdc or 30-35Vdc
- Output current 500mA(typ.), 350-500mA available
- Efficiency (Typ.) : 81% (110V), 83% (220V)
- Power factor (Typ.) : 0.95 (110V), 0.92 (220V)
- Size: L*W*H = 272 * 18 * 11mm
- Meet CE standards, but not have a certification
- open frame, no cover, PC cover is available
- low THD, low ripple current, no flicker
- 20W LED tube driver for T8 tube lights, suitable for 10 ~12 LEDs in series
- 30,000 hours,3 years warranty.
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 3 Day(s) |
| Sample Available | YES |
| Delivery Details | Samples will be charged. The samples (3-10pcs) preparation needs three working days, for order quantities within 1,000 pcs, we need 7-14 days. |
| FOB Port | Shenzhen |
| Loading Info | Freight cost of customers shall be born by customers |
| Packing Info | Packed in standard carton of size L*W*H = 39 x 29 x 21cm. |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Mainland China, Middle East, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
