Customized 3watt 360 Led Bulb For Home With SMD 2835 / 5630
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China (Mainland) |
|---|

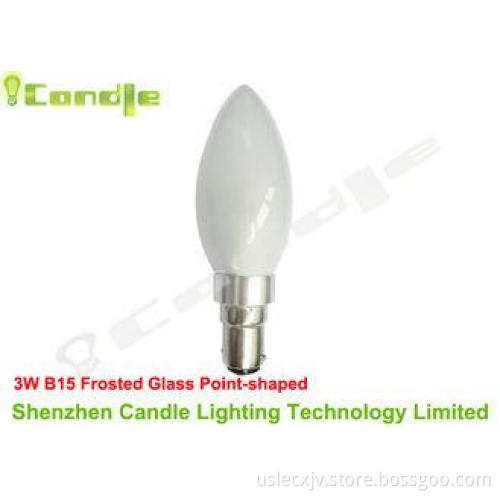

50000H 127v 200v 3watt B15 360 Led Bulb Candle Frosted Glass Day White ROHS CE
Quick Detail:
1. Products name: 3w-B15- 360 LED bulb frosted Glass- Point Shaped
2. Led chips: SMD 5630 Epistar
3. Lighting Angle: 360 degree
4. Glass shell color: Frosted glass
5. Working lifetime: 50,000Hous
6. Quality Certification: CE/ROHS
360 Led Bulb Candle Field of Used (FOC)
1) Illumination lighting for homes , offices , restaurants , hotels , warehouses , parking etc .
2) Task lighting for cabinets, cupboards etc in your homes, restaurants, and kitchens or any other places where accent lighting is required.
3) Display lighting for the articles in your stores and shops.
360 Led Bulb Candle Specifications:
|
Item No. |
KDL-CBL-3WA-B15 |
|||||
|
Power Output |
Led 3.0 watt |
|||||
|
Emitting Angle |
360 degrees |
|||||
|
Colour Consistency |
Color Tolerance<6 SDCM |
|||||
|
CCT(Optional) |
Warm white light (2700K-3200k) Natural white light (3500K-5000K) White light (5500K-7000K) |
|||||
|
Conversion Efficiency |
>75% |
|||||
|
Power Factor |
>0.85 |
|||||
|
Operating Temp. |
-20℃-+45℃, |
|||||
|
Size |
Height 106 * D35 mm |
|||||
|
Operating Life |
50000 Hour |
|||||
|
Warranty Repair |
Three years |
|||||
|
WT |
24 grams |
|||||
|
Pack |
100 Pieces /Carton |
|||||
|
Certificate |
CE certification |
|||||
|
Color Rendering Index(Optional) |
CRI≥65 |
CRI≥70 |
CRI≥80 |
CRI≥90 |
||
|
Lumen |
220-280Lm |
210-270Lm |
210-270lm |
180-240lm |
||
|
Lamp Cap (Optional) |
Material: |
Copper Plating |
copper, iron, aluminum |
|||
|
Type(Optional): |
E10 / E12 / E14 / B15 / E17 / B22 / E26 / E27 |
|||||
|
Light Bulb |
Material: |
shatterproof glass(Special processing technology) |
||||
|
Color(Optional): |
Opal glass / Ground glass / Transparent glass |
|||||
|
Customized design other color |
||||||
|
Optical Source(Optional) |
type: |
5630 / 2835 |
||||
|
Led quantity: |
6 Pieces |
|||||
|
Chip brand: |
ES |
customize Cree, HP, Samsung and other brands |
||||
|
Printed Circuit Board |
Thermal conductivity: |
2W/m.K |
||||
|
Thickness: |
1.2mm |
|||||
|
Dimmable(Optional) |
Yes |
No |
||||
|
Vi (Optional) |
AC85V-130V / 50-60HZ AC170V-264V / 50-60HZ |
AC85V-264V / 50-60HZ |
||||
|
Led Driver |
Isolate constant current drive |
|||||
|
Capacitor: |
anti high temperature of 135° |
|||||
|
LED Radiator |
Material: |
1070 aluminum |
||||
|
Thermal conductivity: |
226w/m.k |
|||||
|
Process: |
Integrated cold forging |
|||||
|
Color(Optional): |
aluminum can oxidize any color |
|||||
|
Accessories |
Silicone: |
Imported brands |
||||
|
Thermal grease: |
Imported brands |
|||||
|
Thermal conductivity:6W/m.k |
||||||
Our Services:
1. Your inquiry can be replied in 24 working hours;
2. Experienced staffs answer all your questions in fluent English;
3. OEM is available, and OEM sample can be finished within 7 days;
4. Exclusive solution can be provided to our customer by our well-trained and professional engineers and staffs.
