2835 Epistar Chip 1070 Aluminum Egg Shaped Led Candle Lamp
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China (Mainland) |
|---|

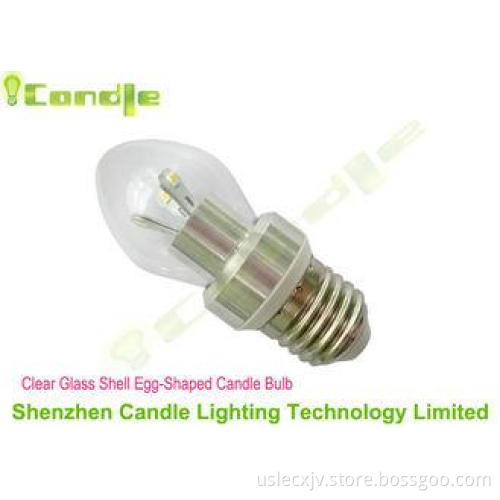

2835 Epistar Chip 1070 Aluminum Egg Shaped Led Candle Lamp And 1.2mm PCB
Quick Detail:
1. Lighting Source:2835 Epistar chip
2. Power Factor>0.85
3. Lamp Body Material: 1070 aluminum
4. PCB Thickness: 1.2mm
5. Certification: CE
6. Brand Name : 3w-E14-Clear Glass Egg Shaped Led Candle Lamp
Egg-Shaped Led Candle Lamp Description:
1. LED candle light using the existing way of interface, the screw, the socket to LED light-emitting principle of unipolarity.
2. Design personnel in the way of lamps and lanterns (E12 / E14 B15 / E26 / E27 / B22, etc.),and even to accord with the habits of people to imitate the appearance of the incandescent light bulb.
3. Architecture made changes made on incandescent light bulbs, LED candle lamp light distribution curve of the basic and point source of convergence.
4. LED candle light is a energy conservation and environmental protection of green lighting lamps and lanterns, with no stroboscopic, low power consumption, low voltage driver, safe and reliable, quick start, no ultraviolet and infrared light, long life;
5. Due to the high power LED candle light is characterized by good color uniformity, optional color more, high brightness, long life, low energy consumption, green environmental protection advantages.
Egg-Shaped Led Candle Lamp Specifications:
| Product Model | KDL-CBL-3WA-E14 | |||||
| Power | Led 3.0w | |||||
| Viewing Angle | 360 degree ±5 degree | |||||
| Colour Consistency | Variation of chromaticity coordinates within a six-step Macadam ellipse or less | |||||
| Colour Temperature (Optional) | 2200K-6500K,or customized | |||||
|
Conversion Efficiency |
>75% | |||||
| Power Factor | >0.85 | |||||
| Operating Temperature | Edison screw base diameter 27mm | |||||
| Size | H87 millimeters*D37 millimeters | |||||
| Working Life | 50000H | |||||
| Warranty period | 3 years | |||||
| N.W. | 34g±2g | |||||
| Packing | 100pcs/Carton | |||||
| Authentication | CE | |||||
| CRI (Optional) | Ra≥65 | Ra≥70 | Ra≥80 | Ra≥90 | ||
| Luminous Flux | 220-280Lm | 210-270Lm | 210-270lm | 180-240lm | ||
|
Light Base (Optional) |
Material: | copper plating | Copper, Iron, Aluminum | |||
| Type: | E10 / E12 / E14 / B15 / E17 / B22 / E26 / E27 | |||||
| Light Shell | Material: | shatterproof glass(Special processing technology) | ||||
| Color(Optional): | milky white / frosted / clear | |||||
| Lamp House(Optional) | Type: | 5630 / 2835 | ||||
| Quantity: | 6PCS | |||||
| Brand: | Epistar | customize other brands | ||||
| PCB | Thermal conductivity: | 2W/m.k | ||||
| Thickness: | 1.2mm | |||||
| Dimmable (Optional) | Yes | No | ||||
| Vin (Optional) | AC85V-130V / 50-60HZ AC170V-264V / 50-60HZ | AC85V-264V / 50-60HZ | ||||
| Led Driver | Constant current isolate power supply | |||||
| Capacitor: | anti high temperature of 135° | |||||
| Heatsink | Material: | AL1070 | ||||
| Thermal conductivity: | 226w/m.k | |||||
| Process: | Integrated cold forging | |||||
| Color(Optional): | any color | |||||
| Accessories | Silicone: | Imported brands | ||||
| Thermal grease: | Imported brands | |||||
| Thermal conductivity:6W/m.k | ||||||
Egg-Shaped Led Candle Lamp Applications:
Egg-shaped candle light are widely used in shopping malls, restaurants, the exhibition hall, the bedroom, window, counter and so on.
Our Led Candle Lamp special Processing Technology:
1. Glass shell Take exclusive Special processing technology, high transmittance glass, high hardness glass, it will not appear fog or greasy dirty inside our lamp if long-term use.
2. Unique aluminum heat dissipation sink take exclusive integrated cold forging technology, high thermal performance.
3. All of our candle bulb, globe bulb beam angle is 360 degrees . Because we focus, so more professional in LED industry.
