1U EPON Optical Line Terminal OLT CMTS Docsis Support Dynam

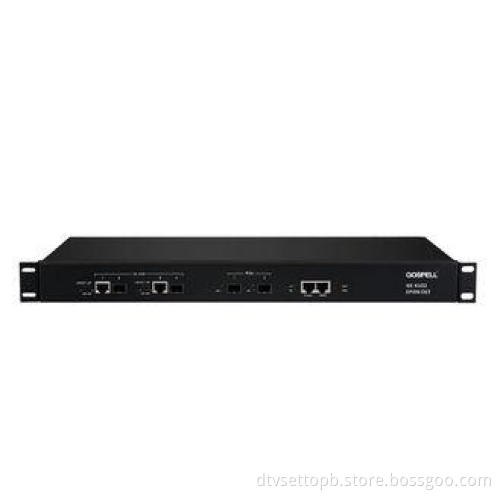

GE-6102 1U EPON OLT

Model No:GE-6102

Products Overview:

Gospell's GE-6102 is a cost effective EPON optical line terminal(OLT), which is designed to provides broadband services in Fiber To The Building(FTTB)/ Fiber To The Home(FTTH) network.

GE-6102 has a compact structure and providing two EPON ports, two copper GE uplink ports, two optical GE uplink ports, supporting up to 128 ONU by 1:64 splitter. GE-6102 features a low power consumption, high stability, eco-friendly and high energy efficiency, and can be installed in communication room and outdoor cabinets, for broadband and leased line service deployment of customers.

Main Features:

High Cost-effective
- 1U, 19’’ standard rackmount unit
- Two EPON ports, supporing up to 128 ONUs
- Up to 20Km of transmission distance at 1:32 splitting ratio
- Provides up to 1.25Gbps of bidirectioal symetric bandwidth each PON port

Powerful QoS Capability
- Supports multiple QoS priority levels
- Priority classification and marking
- Supports various LLID configuration and single LLID configuration
- Port/MAC/TOS/VID-based QoS priority control

High Flexibility
- Supports both copper and optical GE uplink ports
- Port-based speed limitation and bandwidth control
- Supports Dynamic Bandwidth Allocation (DBA)
- IEEE 802.3ad TRUNK
- RSTP,IGMP Proxy
- IGMP Snooping
- Supports 802.11Q, up to 4096 VLAN
- Supports multiple VLAN modes:hybrid, translation, transparent and QinQ
- Port flow control and flow shaping
- power-off alarm function, easy for link problem detection
- Port isolation between different ports

Secured Network
- Port-based speed limitation and bandwidth control
- Supports Dynamic Bandwidth Allocation (DBA)
- ONU auto-detection, authentication and registration
- Anti-broadcast storm
- Supports Access Control List(ACL) filtering and classification
- MAC address binding and filtering
- White list management
- 128-bit AES link encryption

Convenient Management and Maintenance
- Supports in-band and out-of-band management
- Supports Telnet and CLI management
- SNMP-based Gospell EPON Management System(EMS)
- Supports online upgrades
- Supports IEEE802.3ah OAM and extended OAM

Technical Specifications:
