253 EoC Terminal Ethernet over Coax Master With Qualcomm AR

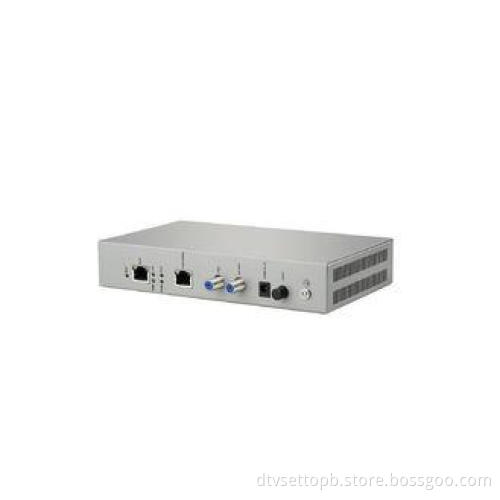

GE-752B Indoor EoC Headend Master

Model No:GE-752B

Products Overview:

GE-752B indoor EoC headend is a Home Plug AV and IEEE 1901 compliant Ethernet over Coax (EoC) convergence unit developed by GOSPELL, and is designed for high bandwidth bidirectional network upgrading transformation over existing coaxial cable network. This enables bidirectional IP services (such as Internet access, OTT, VoD, VoIP and Video Surveillance) and unidirectional DTV broadcasting services simultaneously. It adopts Qualcomm’s AR7410 transceiver which operates over a wider spectrum from 7.5MHz to 65MHz, delivering up to 600Mbps of PHY rates and 320Mbps of MAC layer transmission rates.

GE-752B has a compact structure with an metal housing that can protect the electronics from RF interference, moreover, it supports SNMP/Web based management, which make it easy for installation and mass deployment. By using with numerous EoC terminals, operators are ensured a high perfomance, cost-competitive, flexible, reliable bidirectional network solution for Multiple Dwelling Units(MDUs), offices, apartments and hotels enabling lower CAPEX and OPEX.

Main Features:

High Performance
- Supports up to 253 EoC terminals
- Supports up to 600Mbps of PHY rates and 320Mbps of MAC layer transmission rates

High Reliability and Flexibility
- Wide operating temperature range from -10℃ to 50℃, suitable for any indoor environments deployment
- High anti interference performance benefits from EoC OFDM technology
- Supports up to 4KV of surge protection

Best In Class EoC Technology
- Adopts established low-frequency HomePlug AV modulation technology, no influence on CATV Service
- Based on a Master/Slave architecture, plug & play deployment
- Supports various coaxial network topologies, no need to do any changes on existing coaxial distribution network(CDN)
- Supports multiple QoS priority levels
- Supports 802.11Q, up to 4096 VLAN

Secured Network
- Supports up to 128bits of AES link encryption

- EoC white list management, bandwidth control, MAC address binding and filtering, port mirroring, anti-broadcast storm and unknown packet inhibition

Convenient Management and Maintenance
- Supports Web, CLI, SNMP based network management
- Automatic configuration of parameters
- Supports software auto-upgrades

Technical Specifications:
