Vertical 24V Maglev Wind Generator Wind Solar Hybrid Street Light System
1. Brief to 300w wind turbine
The CXF series of vertical axis maglev wind turbines undergoes a continuous improvement process, which incorporates exterior design, utility design, electrical engineering, dynamic engineering, power mechanics, aviation air engineering, wind tunnel testing, lightening protection, computer simulation techniques and other multiple specialities.
| Rated power | Approx. 300W at 13 m/s (26 mph) |
| Swept Area | 0.8 m2 |
| Height / Diameter | 1.23/1.09 m |
| Weight | 27 kg |
| Shipping Dimensions | 1160 x 520 x 790 mm 56 kg |
| Startup Wind Speed | 1 m/s (2.6 mph) |
| Voltage | 12, and 24 V AC |
| Turbine Controller | Smart Wind $ solar hybrid controller |
| Body | Permanent mold cast aluminum |
| Blades | (7) Injection-molded aluminum |
| Alternator | Permanent maglev generator |
| Overspeed Protection | 3 phases short-circuit braking control |
| Survival Wind Speed | 65m/s |
| Mount | Inner diameter 80MM 140mm outer diameter |
| Wind Speed Operating Range | 1-15 m/s (8-49 mph) |
| Optimum Wind Speed Range (RPM) | 8-10 m/s ( 750-800RPM) |
2. Feature:
- Magnetic levitation technology
- Independent of the direction of the wind
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Design life: at least 20 years
- Noise: Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
3. Application :

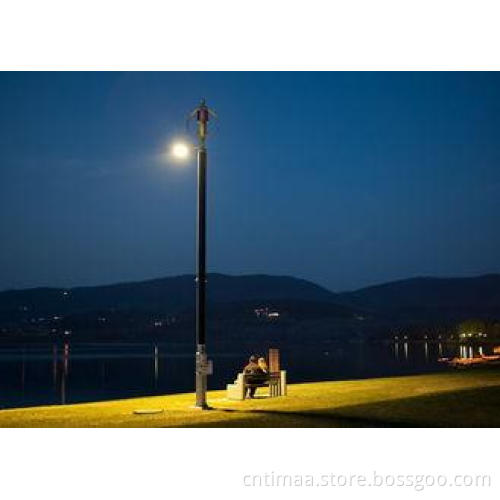

The 300w wind turbine, 12V and 24V for option, is ideal for wind solar hybrid street lights or LED light for parking lots. The unit provides a durable, reliable, and fully customized hybrid solution to wind solor hybrid power systems.
