Commercial Magnetic Levitation Vertical Axis Wind Turbine 200w 300W
Quick Details
- Startup at low wind speed of 1m/s
- Higher efficiency compared to traditional HAWT
- Works even in turbulence
- Visually pleasing appearance
- Turbine construction is resistant to gale 60m/s (132MPH)
- Robustness and adaptation to all possible environmental conditions thanks to material of aluminum alloy or stainless steel
- Life span: at least 20 years
Description
TYPMAR maglev wind generator have 3 models, 200W, 300W, 400W are for hybrid street lighting independent power.

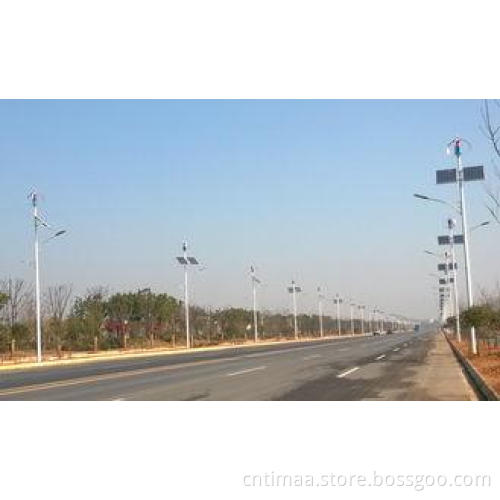

For the lamp system power supplying renewable energy, this a project in southChina. The installation place is a historic reservation site. Total 600 lamps installed. Generally the configuration as below:
Maglev wind generator : 300W, 24V 1 sets
Solar Panel : 120W,24V 2 pcs
Camera : 50W,24V 1 pcs for roadway ,and 25W 24V 1 pcs for the pavement
Tower : 7.2 m
Gel Batteries : 200AH, 2 pcs
Specification:
|
Maglev wind generator
|
||||||
| Type | CXF200 | CXF300 | CXF600 | CXF1000 | CXF3000 | |
| Rated Power | 200W | 300W | 600W | 1000W | 3000W | |
| Size(Height / Diameter) | 1035/1150mm | 1090/1240mm | 1320/1540mm | 2200/2400mm | 3370/3700mm | |
| Turbine Weight | 22.5KG | 31KG | 49KG | 180KG | 415KG | |
| Blades Material | Aluminum alloy | Aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy | |
| Blades Qty. | 3 | 3 | 3 | 3 | 3 | |
|
Start-up wind speed |
1m/s | 1.3m/s | 1.3m/s | 1.5m/s | 1.5m/s | |
|
Cut in wind speed |
2m/s | 3m/s | 3m/s | 5m/s, 3.5m/s | 3.5m/s | |
| Rated Wind Speed | 13m/s | 12m/s | 13m/s | 13m/s | 13m/s | |
| Cut out Wind Speed | 16m/s | 15m/s | 15m/s | 15m/s | 15m/s | |
| Survival Wind Speed | 60m/s | 65m/s | 65m/s | 60m/s | 60m/s | |
| Generator Type | AC,3 phases | AC,3 phases | AC,3 phases | AC,3 phases | AC,3 phases | |
| Controller output voltage | DC12V | DC24V/12V | DC24V/12V/48V | DC48V/24V | DC48/96V | |
| Controller output current | <12Amp | <20Amp | <30Amp | <50Amp | <130Amp | |
| Controller braking system |
3-Phase /short circuit protection/ NFB/ Manual break or automatic brake optional |
|||||
| Ambient Temperature | -30~50 ℃ | -40~50 ℃ | -40~50 ℃ | -40~50 ℃ |
-40~50 ℃ |
|
Advantages
| Rated power | Approx. 300Wh at 13 m/s (26 mph) |
| Swept Area | 0.8 m2 |
| Height / Diameter | 1.23/1.09 m |
| Weight | 27 kg |
| Shipping Dimensions | 1160 x 520 x 790 mm 56 kg |
| Startup Wind Speed | 1 m/s (2.6 mph) |
| Voltage | 12, and 24 V AC |
| Turbine Controller | Smart Wind $ solar hybrid controller |
| Body | Permanent mold cast aluminum |
| Blades | (7) Injection-molded aluminum |
| Alternator | Permanent maglev generator |
| Overspeed Protection | 3 phases short-circuit braking control |
| Survival Wind Speed | 65m/s |
| Mount | Inner diameter 80MM 140mm outer diameter |
| Wind Speed Operating Range | 1-15 m/s (8-49 mph) |
| Optimum Wind Speed Range (RPM) | 8-10 m/s ( 750-800RPM) |
