High Power 24W AC85 - 265V / 24V 1000 * 72mm Outdoor RGB LE
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

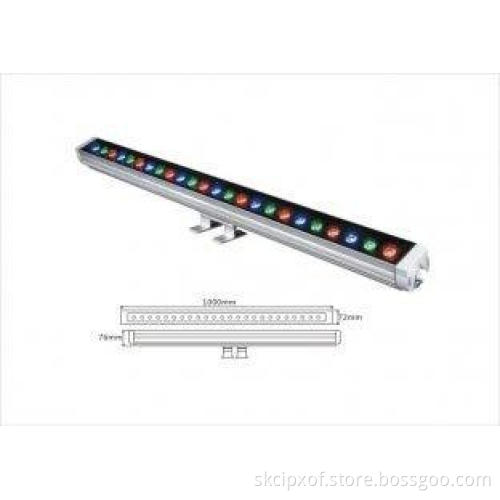

High Power 24W AC85 - 265V / 24V 1000 * 72mm Outdoor RGB LED Wall Washer for Theatres
|
Product Name: |
24w LED wall washer |
|
Model: |
VL-WL104-24W |
|
Light Source: |
24pcsX1W LED |
|
Watt(W): |
24W |
|
IP grade: |
IP66 |
|
Dimension(mm): |
1000x72x76mm |
|
Input voltage(V): |
AC85-265V/24V |
|
Beam angle (°): |
8°25°35°45°60°90°120° |
|
Projection Distance: |
1-50M |
|
Color Temperature(K): |
R/G/B/Y/W RGB |
|
LED Driving Mode: |
350mA |
|
Power factor(PF): |
>88% |
|
Frequency Range: |
50HZ-60HZ |
|
Power Efficiency: |
>90% |
|
Light Design: |
LED+Lens |
|
Color Rendering Index(CRI): |
>80 |
|
LED Node Temperature: |
＜65°C |
|
Total Harmonic Distortion (THD): |
≤ 5% |
|
Working Temperature |
-30°C -+ 60°C |
|
Storage Temperature |
-30°C -+ 60°C |
|
Working Humidity |
10 % ~ 90 % RH |
|
Junction Temperature |
70 ° C ± 1 0% ( Ta= 25 ° C ) |
|
Material: |
Tempered glass+ Aluminium |
|
Lifespan : |
> 50, 000hours |
|
Warranty Period: |
3 years |
|
Certificate: |
CE, RoHS |
High Power 24W AC85 - 265V / 24V 1000 * 72mm Outdoor RGB LED Wall Washer for Theatres
LED Spotlight series:
There are 9W/18W/24W/36W/108W led wall washer for your choice.
Color Temperature: Red, Green, Blue, White, Yellow, RGB
Products introduction
1. Typical control methods for RGB wall washer is external control and internal control (built-in control).
2. Led wall washer can work in independent mode and DMX mode, which can generate various color changing effects, such as fading, flashing, single color, steady, RGB full color, static, 7 color jumping synchronously etc.
3. Integrated heating solution to low the light decline of the LEDs, and guarantee lifespan of the lamp
4. This light can also be used over a narrow area for dramatic effect, especially when several are used together or to cover large areas with strong impact.
5. This linear led wall washer we usually adopt 24x1W Cree and Bridgelux LEDs as the light source.
6. Optical systems of our linear led wall washer utilize an unique combination of reflective and refractive optical
components.
7. 24pcs high brightness LEDs create a bright wash of light.
8. Lamps use PMMA optical lens, 8°25°35°45°60°90°120°lens are available, can achieve the best lighting effects.
9. Lamp surfaces adopt tempered glass and silicone rubber seals, internal epoxy potting to ensure good waterproof the lights and protection grade IP66.
Application:
Landscape lighting, theatres, hotels, shopping malls, office, night clubs, architectural lighting, stages, museums, art galleries, historical and modern buildings, restaurants, park, pub, coffee house, exhibition and fashion show, etc.
Our service:
1.Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product
Service commitment
VISTA LIGHTING LED LIMITED provide three years guarantee, all the products are passed strict test, Warranty period caused by product itself factors in the failure, we can replace or recondition the product without charge. If out of guarantee period, we still can Provide Technical Product support for customers.
